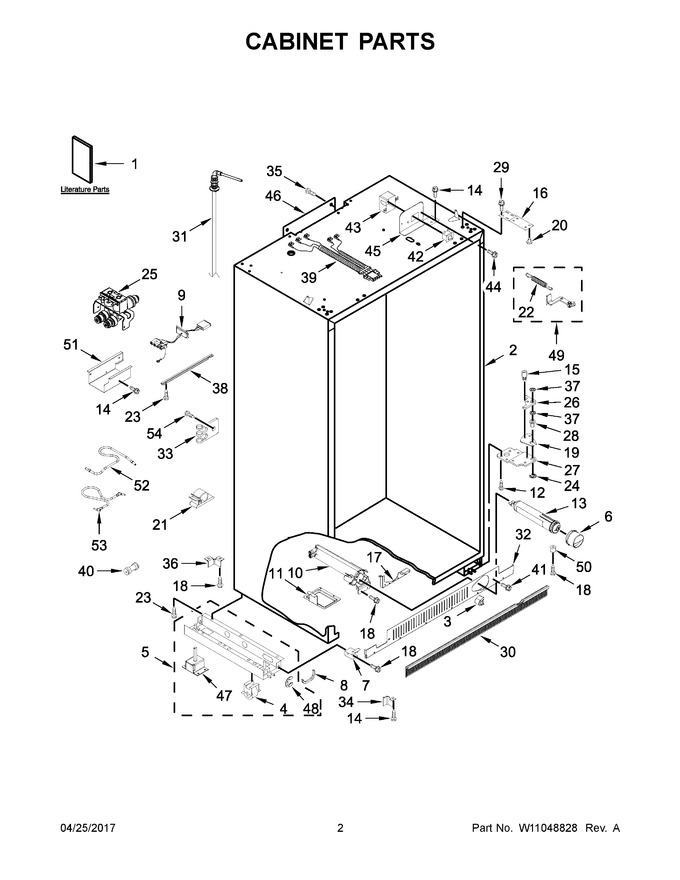

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10763009 Use And Care Guide Appelez-nous -
2 N/P Cabinet (not A Serviceable Part) Appelez-nous -
3 WP2260503B Button, Water Filter (black)   (Replaces: 2260503B) Special Order $ 76.42

4 WPW10138054 Assembly, Roller   (Replaces: W10138054) Special Order $ 45.34

5 W10860229 Assembly, Support Base (left Hand)   (Replaces: W10279275) Special Order $ 381.83

6 W11238395 Cap, Water Filter (black)   (Replaces: W10797527) In-Stock Immediately $ 50.68

7 W10839844 Bracket, Grill Mounting   (Replaces: 2307640) Special Order $ 43.26

8 2307584 Grommet, Crossover Tube Special Order $ 23.40

9 W10279391 Assembly, Smart Valve Wire Special Order $ 134.19

10 WPW10121140 Housing, Water Filter   (Replaces: W10121140) In-Stock Immediately $ 171.96

11 2318189 Tray, Filter Drip Special Order $ 148.73

12 3400525 Screw Special Order $ 12.83

13 EDR3RXD1B Filter, Water   (Replaces: W10121146) In-Stock Immediately $ 49.99

14 00487294 Screw   (Replaces: 487294) Special Order $ 175.09

15 W11769878 Screw   (Replaces: 3400230) Special Order $ 12.77

16 2257644 Hinge, Top Special Order $ 177.98

17 W11755873 Bracket, Filter   (Replaces: W10674648) Special Order $ 80.33

18 WP489464 Screw   (Replaces: W10001250) In-Stock Immediately $ 8.38

19 WP2004994 Lock, Bushing   (Replaces: 2004994) In-Stock Immediately $ 8.39

20 W11500952 Bushing, Top Hinge   (Replaces: W10484913) In-Stock Immediately $ 34.74

21 WPM0104106 Clip, Cord   (Replaces: M0104106) Special Order $ 8.17

22 W11805224 Spring, Door Closure (green)   (Replaces: 2221242) Appelez-nous -
23 W11624204 Screw   (Replaces: 486194) Special Order $ 14.72

24 WP489236 Ring, Bushing Retaining   (Replaces: 2005008) In-Stock Immediately $ 12.78

25 W11243758 Valve, Inlet   (Replaces: W10820321) In-Stock Immediately $ 305.25

26 W11700297 Cover, Bottom Gap   (Replaces: W10482554) In-Stock Immediately $ 38.28

27 W10527053 Hinge, Bottom (left Hand)   (Replaces: 2006779) Special Order $ 137.73

28 WP2302876 Bushing, Adjustable   (Replaces: 2302876) In-Stock Immediately $ 90.72

29 W11721628 Screw   (Replaces: 8533913) In-Stock Immediately $ 14.78

30 W10859915 Skirt, Bottom Grille   (Replaces: W10188551) Special Order $ 249.29

31 W11212166 Fitting, Water   (Replaces: W10357286) In-Stock Immediately $ 40.93

32 W11739148 Grille, Bottom (black)   (Replaces: W10182718) Special Order $ 214.59

33 WP488366 Clip, Water Tube   (Replaces: 2208136) Special Order $ 11.92

34 2006556 Bracket, Support Base (front) (right Hand) Special Order $ 37.20

35 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 8.40

36 2006617 Bracket, Base Support (rear) Appelez-nous -
37 WP2006346 Washer, Extension Arm   (Replaces: 2006346) In-Stock Immediately $ 11.76

38 2320559 Support, Valve Special Order $ 88.79

39 W10780213 Assembly, Switch Wire Special Order $ 130.91

40 WP2300868 Connector, Union   (Replaces: W10271541) In-Stock Immediately $ 29.05

41 WP8281163 Screw (stainless)   (Replaces: 8281163) In-Stock Immediately $ 10.70

42 W11384469 Switch, Rocker Arm   (Replaces: 1118894) In-Stock Immediately $ 39.09

43 2215938 Cover, Switch Special Order $ 94.78

44 WP965173 Screw   (Replaces: 487415) In-Stock Immediately $ 11.87

45 W10741112 Bracket, Switch (left Hand) Special Order $ 67.37

46 2215612 Cover, Air Duct Appelez-nous -
47 2005032 Leveler, Adjustable In-Stock Immediately $ 200.07

48 2006841 Ring, Retainer Special Order $ 92.66

49 WPW10121046 Assembly, Cam (left Hand)   (Replaces: W10121046) In-Stock Immediately $ 83.71

50 2005433 Spacer Special Order $ 23.33

51 2320601 Shield, Water Valve Special Order $ 120.16

52 W11565275 Tube, Filter Inlet   (Replaces: W10296807) Special Order $ 67.89

53 W11533506 Tube, Filter Outlet   (Replaces: W10683737) In-Stock Immediately $ 33.15

54 WPW10141645 Screw   (Replaces: W10141645) Special Order $ 8.05

1A W10859715 Energy Guide Appelez-nous -
1B W10910733 Tech Sheet (english) Appelez-nous -
1C W10910734 Tech Sheet (french) Appelez-nous -
1D W10762997 Wiring Diagram Appelez-nous -
1E W10763010 Installation Instructions Appelez-nous -
27A WP2006780 Hinge, Bottom (right Hand)   (Replaces: 2006780) Special Order $ 299.33

34A 2006616 Bracket, Support Base (front) (left Hand) Special Order $ 91.53

42A W11457217 Switch, Rocker Arm (freezer)   (Replaces: 1115373) Special Order $ 40.09

45A W10741111 Bracket, Switch (right Hand) Special Order $ 67.37

49A WP2307857 Assembly, Cam (right Hand)   (Replaces: 2307857) In-Stock Immediately $ 79.30

5A W10860448 Assembly, Support Base (right Hand)   (Replaces: W10138423) In-Stock Immediately $ 383.00
