SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/top

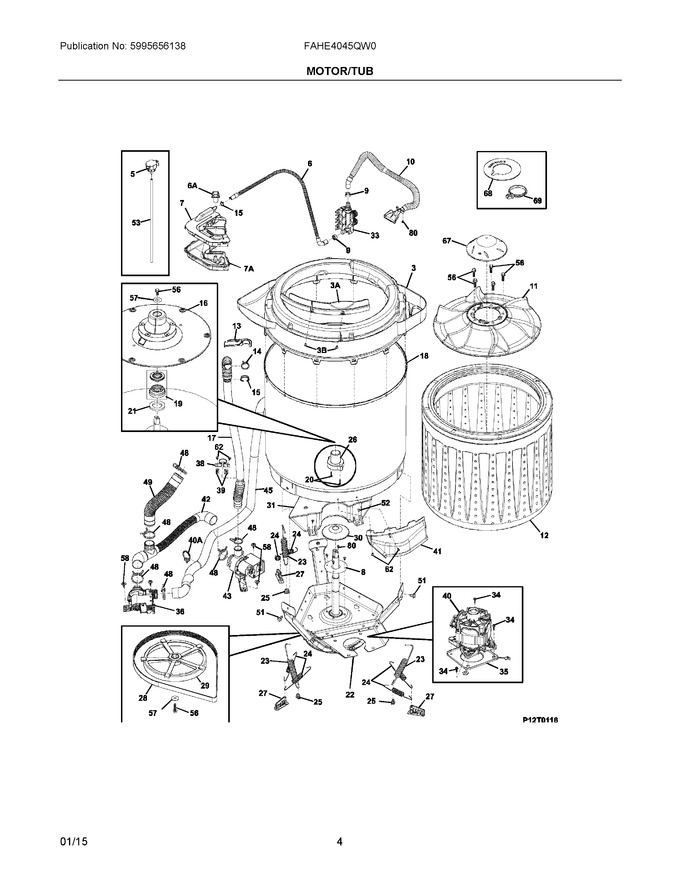

03 - Motor/tub


04 - Control/panel


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	137351500		Cover, Splash Tub, Recirculating				$ 204.54
5	137055800		Sensor, Pressure, Low Freq Analog			Immediately	$ 100.80
6	137469800		Hose, Dispenser Out				$ 63.00
7	137189048		Cover, Dispenser, Soft				$ 31.29
8	137363400		Cover, Bearing				$ 26.57
9	5304488479		Clamp			Immediately	$ 35.65
10	137205600		Hose, Fill Nozzle Asm				$ 70.88
11	137494000		Wash Plate				$ 142.91
12	137492800		Tub, Spin, H+ W/o Lint Fil				$ 264.65
13	137456400		Bracket, Routing, Recirc Hose		Appelez-nous	-
14	137087510		Clamp, Hose		Appelez-nous	-
15	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 11.81
16	137470000		Trunnion, Large				$ 242.66
17	137364200		Hose, Recir Pump Out				$ 126.12
18	137326201		Tub, Splash, Air Dome/bearng				$ 271.43
19	137547700		Tub Seal Kit				$ 73.03
20	3205150		Screw, Tub Bearing, 8-12b X 0.750				$ 3.94
21	137272000		Grommet, Seal				$ 50.19
22	137513900		Leg, Dome & Brackets, Assembly				$ 499.00
23	137497110		Spring, Vertical, Black				$ 48.35
24	137532600		Spring, Horizontal				$ 33.92
25	137507100		Retainer, Spring				$ 124.69
26	137466100		Bearing & Housing Assembly		Appelez-nous	-
27	137491600		Retainer, Insert, Spring				$ 23.99
28	137051400		Belt, Poly V			Immediately	$ 52.76
29	137489000		Pulley, Drive, 250 Mm				$ 233.10
30	137049800		Shield, Slinger				$ 20.42
31	137466600		Counterweight				$ 219.82
33	137465100		Valve-3 Coil, 120v 60hz Water				$ 198.41
34	137470600		Screw, Quad Hex, 12-14 X 0.75				$ 12.08
35	137510300		Plate, Motor Isolator				$ 29.24
36	137221600		Pump, Drain			Immediately	$ 210.23
38	137390800		Restraint, Hose, Lower		Appelez-nous	-
39	137416300		Nut, Speed U		Appelez-nous	-
40	137326000		Motor, 3 Phase, Induction			Immediately	$ 439.90
41	137282900		Shield, Motor		Appelez-nous	-
42	137364100		Hose, Recir Pump Inlt				$ 149.50
43	137389000		Pump, Recirculation				$ 158.29
48	5304536802		Clamp, Hose, Wire   (Replaces: 131306234)			Immediately	$ 4.46
49	137364500		Hose, Tub To Pump Rec				$ 51.82
51	137466300		Screw, Hex Washer Head, 5/16 X 0.625, Special		Appelez-nous	-
52	5304488469		Screw #10-16 X .625 Comb, Pan		Appelez-nous	-
53	5304401845		Tubing, Vinyl, 16" Long   (Replaces: 5303292722)				$ 64.58
56	137050600		Screw 5/16-18-2a, Unc X 1.25				$ 19.32
57	134716700		Washer, Flat   (Replaces: 137489500)				$ 2.36
58	134160900		Screw, Washer Hd, 10-16ab X 0.75				$ 13.39
62	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 29.53
67	137193200		Cap, Wash Plate				$ 55.02
68	131707800		Ring, Drain Hose				$ 50.28
69	5303309503		Clip, Drain Hose, Back Sheet				$ 7.88
80	137511100		Screw, Hex Head, 10-24 X 0.500, Type F				$ 13.39
3A	137419200		Shield, Tub Cover				$ 27.08
3B	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 29.53
40A	137324300		Wiring Harness, Motor				$ 112.61
45D	134592700		Hose, Drain			Immediately	$ 99.23
6A	137352548		Cap, Siphon Disp				$ 27.51
7A	137176448		Cup, Dispenser, Soft				$ 36.25
NI	131453000		Bushing, Snap-in				$ 11.81
NIA	131901400		Seal, Splash Cover			Immediately	$ 24.10
NIA	131663500		Cushion, Drain Hose, Base				$ 23.00
NIAA	137457100		Bracket, Motor, Tlw, Lc				$ 37.43
NIB	134261300		Clip, Drain Hose, Push-mount				$ 13.39
NIC	134745300		Clip, Drain Hose				$ 11.66

    View Diagram in Separate Window       Print Part List
