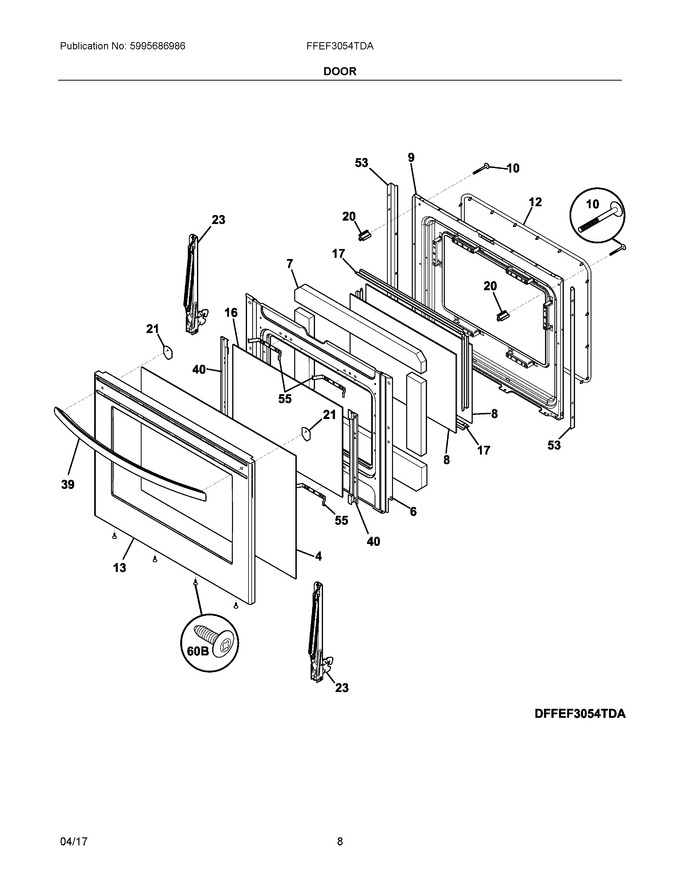

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452758		Glass, Oven Door, Black, W/foil			Immediately	$ 237.63
6	316406328		Shield-wool   (Replaces: 316406312)				$ 96.90
7	316405600		Insulation, Oven Door				$ 85.05
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 129.94
9	5304529999		Liner, Oven Door   (Replaces: 316423707)				$ 163.47
10	316433303		Screw, Handle Mtg., 10-24 X 1.75", (2)   (Replaces: 316439500)			Immediately	$ 34.63
12	316405000		Seal, Oven Door			Immediately	$ 199.08
13	5304532516		Panel, Oven Door, Black Stainless, Outer   (Replaces: 316603904)				$ 159.25
16	316552800		Glass, Door, Airwash				$ 93.87
17	5304504811		Spacer, Glass			Immediately	$ 27.80
20	316284100		Spacer, Door Handle, (2)				$ 16.54
21	316533801		Plate, Distribution, Load			Immediately	$ 6.30
23	316575911		Hinge, Oven Door, Brown				$ 114.60
39	140067504104		Handle, Door, Black Stainless   (Replaces: 5304509119)		Appelez-nous	-
40	316552401		Bracket, Airwash Glass, (2)				$ 32.03
53	5304532042		Shield, Door Filler, Black, (2)   (Replaces: 316408201)				$ 28.65
55	316408300		Bracket, Glass Support, (4)				$ 23.59
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 14.96
NI	5304508804		Touch Up Paint, Pen, Black Stainless		Appelez-nous	-
NI	316483102		Label, Anti-tip   (Replaces: 316483100)				$ 3.95
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
