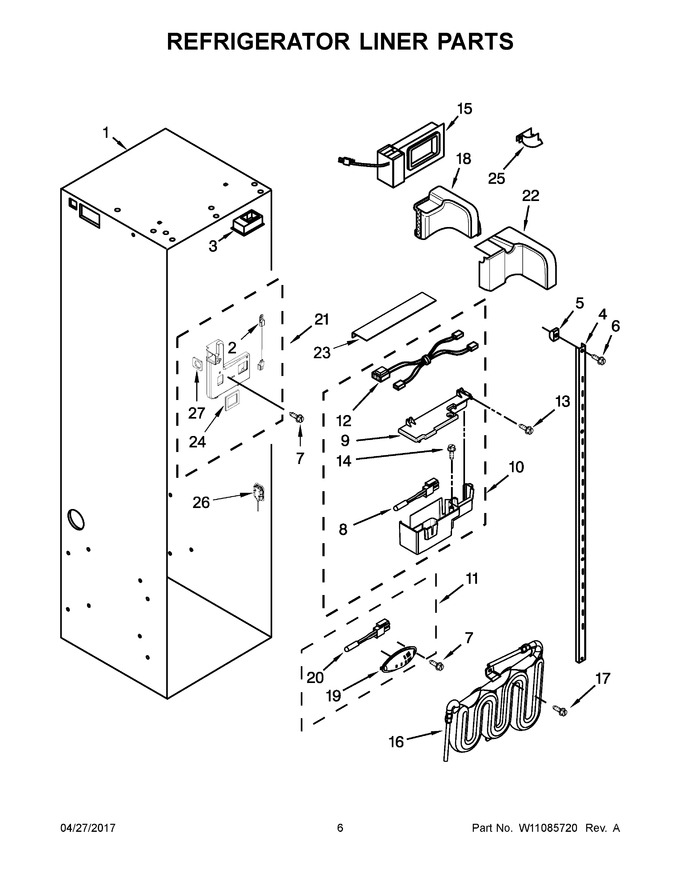

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2306010 | Thermistor (Replaces: 2306010) |
|
Immediately | $ 93.22 | ||||
| 3 | 2208970 | Duct, Air |
|
$ 136.26 | |||||
| 4 | WP2259077 | Ladder, Shelf (Replaces: 2259077) |
|
$ 74.30 | |||||
| 5 | 520965 | Support, Ladder |
|
$ 28.22 | |||||
| 6 | W10808292 | Screw |
|
- | |||||
| 7 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 7.45 | ||||
| 8 | WP2302937 | Thermistor (Replaces: 2302937) |
|
$ 79.57 | |||||
| 9 | 2302986 | Lid, Baffle |
|
- | |||||
| 10 | WPW10169528 | Assembly, Control Baffle (Replaces: W10169528) |
|
$ 303.82 | |||||
| 11 | WP2317844 | Assembly, Thermistor (Replaces: 2317844) |
|
$ 10.24 | |||||
| 12 | 2310205 | Assembly, Meat Pan Wire |
|
- | |||||
| 13 | W11830745 | Screw (stainless) (Replaces: 8533929) |
|
- | |||||
| 14 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 15 | WP2221296 | Assembly, Air Baffle (Replaces: 2221296) |
|
Immediately | $ 371.32 | ||||
| 16 | W10645131 | Reservoir, Water |
|
$ 259.50 | |||||
| 17 | W10141518 | Screw |
|
$ 8.59 | |||||
| 18 | WP2309222 | Assembly, Air Diffuser (Replaces: 2309222) |
|
$ 91.86 | |||||
| 19 | WP2317844 | Cover, Thermistor (Replaces: 2317105) |
|
$ 10.24 | |||||
| 20 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 27.77 | ||||
| 21 | W10475010 | Assembly, Spacer |
|
$ 291.29 | |||||
| 22 | 2309087 | Cover, Air Diffuser |
|
- | |||||
| 23 | W10159488 | Diverter, Crisper Cover |
|
- | |||||
| 24 | 2259398 | Seal, Air Duct |
|
- | |||||
| 25 | 2003577 | Guard, Air Return |
|
- | |||||
| 26 | W11683242 | Assembly, Led Module (Replaces: W10843339) |
|
Immediately | $ 300.56 | ||||
| 27 | W10475008 | Seal, Air Duct (round Hole) |
|
- |
