SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Optional Parts (not Included)

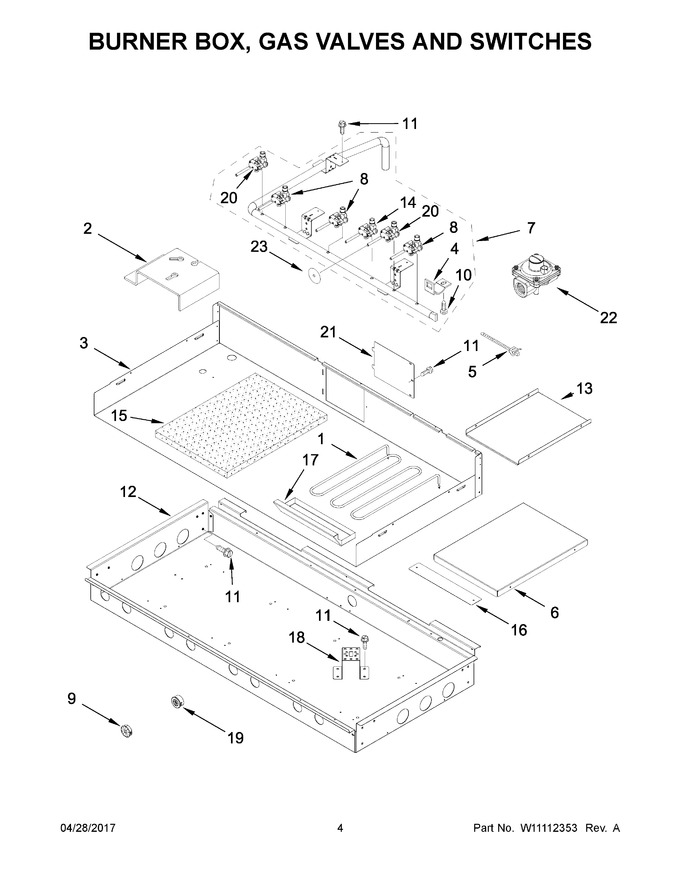

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193014		Element, Griddle				$ 323.46
2	8285790		Bracket, Mounting Orifice				$ 85.85
3	W10778210		Cover, Burner Box		Appelez-nous	-
4	WPW10432260		Bracket, Valve   (Replaces: W10432260)				$ 73.99
5	W11675299		Tie, Cable   (Replaces: W10368807)				$ 13.53
6	W10246074		Tray, Griddle Insulation		Appelez-nous	-
7	W10402611		Assembly, Manifold				$ 201.17
8	WPW10385582		Valve, Single   (Replaces: W10385582)			Immediately	$ 340.85
9	W10189097		Bushing, Burner Box				$ 8.00
10	W10189140		Screw				$ 6.82
11	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
12	W10371517		Box, Burner		Appelez-nous	-
13	W10145620		Tray, Element Griddle		Appelez-nous	-
14	WPW10385583		Valve, Simmer   (Replaces: W10385583)			Immediately	$ 332.10
15	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
16	W10250433		Plate, Cover		Appelez-nous	-
17	W10276497		Tray, Griddle Drip				$ 404.03
18	W10560553		Bracket, Burner		Appelez-nous	-
19	309552		Bushing, Snap		Appelez-nous	-
20	WPW10371235		Valve, Dual   (Replaces: W10371235)			Immediately	$ 332.15
21	W10115843		Cover, Ignition		Appelez-nous	-
22	W11106948		Regulator, Pressure   (Replaces: W10449140)			Immediately	$ 238.90
23	W10189177		Seal, Switch Cover				$ 10.00
NI	W10353141		Tube (right Front)				$ 175.16
NI	WPW10353133		Tube (right Rear) (also Center Rear)   (Replaces: W10353133)				$ 174.89
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10353154		Tube (left Front)			Immediately	$ 172.78
NI	W10280797		Tube, (left Rear)		Appelez-nous	-
NI	W10353152		Tube (center Front)				$ 78.93
