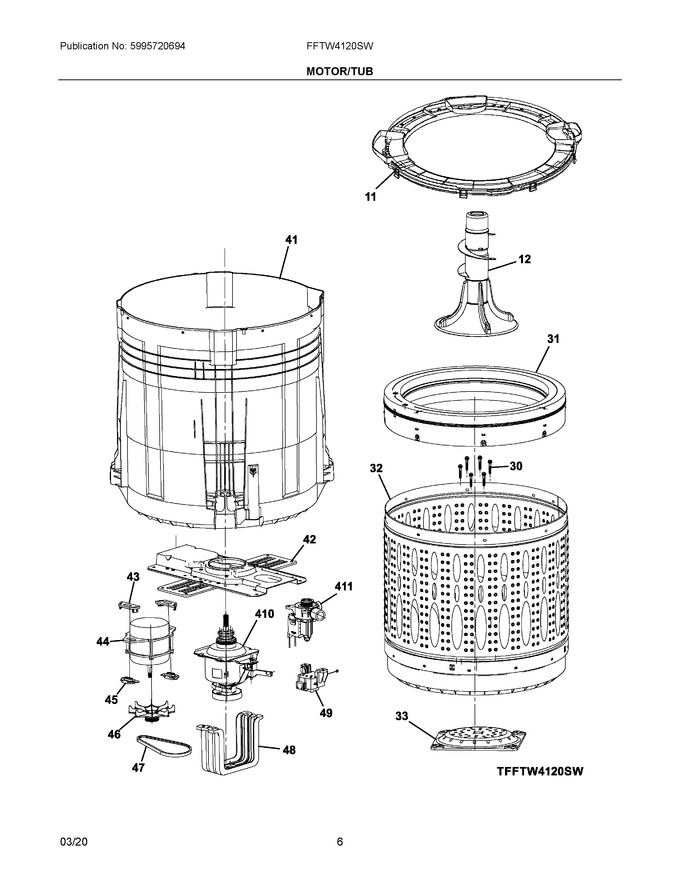

04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511348		Cover, Tub, Outer				$ 61.16
12	4056012547		Agitator, Assembly   (Replaces: 5304511349)				$ 60.44
30	5304524342		Bolt, Clutch Mtg.			Immediately	$ 10.26
31	5304511350		Balance Ring, Assembly				$ 140.92
32	5304511351		Tub, Assembly, Stainless				$ 234.23
33	5304538562		Plate, Coupling   (Replaces: 5304511352)			Immediately	$ 59.24
41	5304521337		Tub, Assembly, Outer, Subordinate   (Replaces: 5304511353)				$ 254.76
42	5304511354		Plate, Base, Outer Tub				$ 153.50
43	5304511355		Cushion, Motor Mtg, Upper		Appelez-nous	-
44	5304511356		Motor, Single Phase				$ 383.93
45	5304511357		Cushion, Motor Mtg, Lower		Appelez-nous	-
46	5304516131		Pulley, Motor   (Replaces: 5304511358)				$ 141.26
47	5304511359		Belt, Ribbed			Immediately	$ 62.51
48	5304511360		Bracket, Clutch Mtg				$ 27.86
49	5304511361		Retractor, Drain Pump				$ 145.50
410	5304511362		Clutch Body, Assembly				$ 436.12
411	5304511363		Pump, Drain			Immediately	$ 288.20
