01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

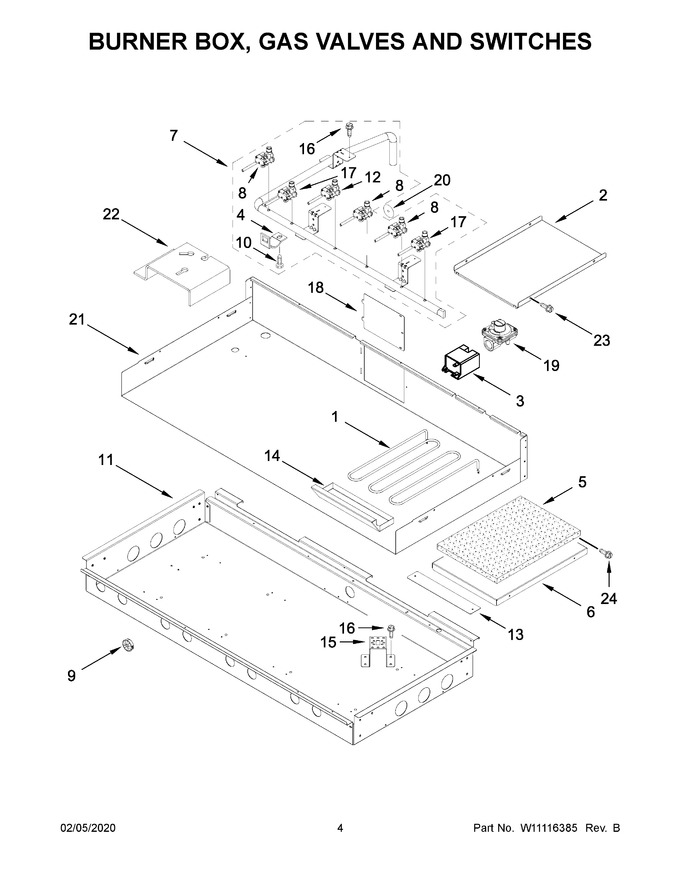

03 - Burner Box, Gas Valves And Switches


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193014		Element, Griddle				$ 291.11
2	W10145620		Tray, Element Griddle		Appelez-nous	-
3	W11601369		Reignitor   (Replaces: W10116108)			Immediately	$ 75.04
4	WPW10432260		Bracket, Valve   (Replaces: W10432260)				$ 66.59
5	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
6	W10246074		Tray, Griddle Insulation		Appelez-nous	-
7	W10402611		Assembly, Manifold				$ 201.17
8	WPW10385582		Valve, Single   (Replaces: W10385582)			Immediately	$ 306.77
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw				$ 6.14
11	W10371517		Box, Burner		Appelez-nous	-
12	WPW10385583		Valve, Simmer   (Replaces: W10385583)			Immediately	$ 298.89
13	W10250433		Plate, Cover		Appelez-nous	-
14	W10276497		Tray, Griddle Drip				$ 363.63
15	W10560553		Bracket, Burner		Appelez-nous	-
16	4450800		Screw, Grounding				$ 12.12
17	WPW10371235		Valve, Dual   (Replaces: W10371235)			Immediately	$ 298.94
18	W10115843		Cover, Ignition		Appelez-nous	-
19	W11106948		Regulator, Pressure   (Replaces: W10449140)			Immediately	$ 215.01
20	W10189177		Seal, Switch Cover				$ 9.00
21	W10778210		Cover, Burner Box		Appelez-nous	-
22	8285790		Bracket, Mounting Orifice				$ 77.27
23	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
24	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
NI	W10353152		Tube (center Front)				$ 71.04
NI	W10353154		Tube (left Front)			Immediately	$ 155.50
NI	W10280797		Tube, (left Rear)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10353141		Tube (right Front)				$ 157.64
NI	WPW10353133		Tube (right Rear) (also Center Rear)   (Replaces: W10353133)				$ 157.40
