SELECT A DIAGRAM

01 - Cover Sheet

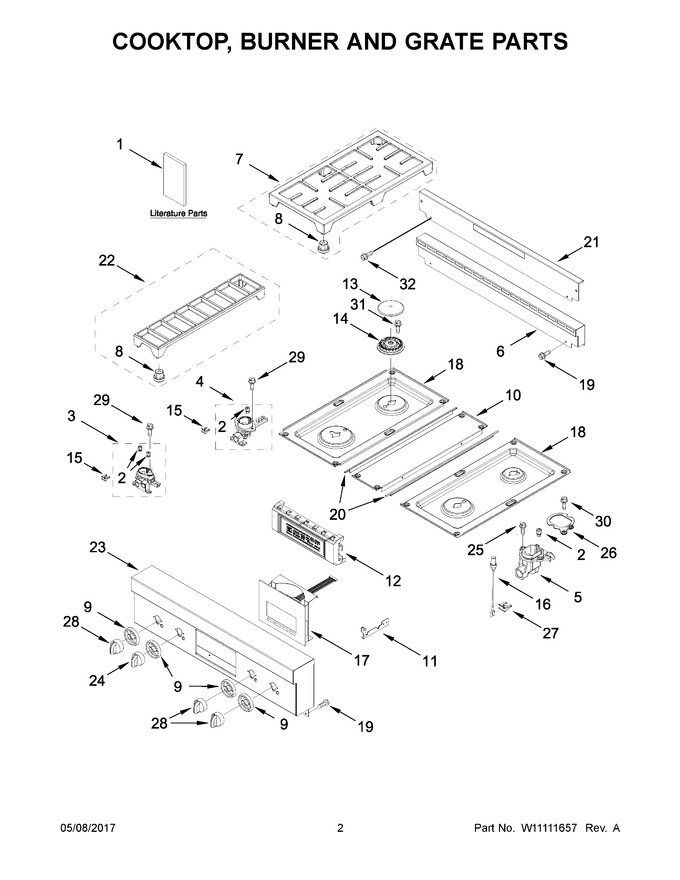

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Chassis Parts


05 - Oven Parts


06 - Top Venting


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10837388		Guide, Use & Care		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front, High)				$ 90.69
3	W10846622		Assembly, Orifice Holder (left Front)				$ 111.86
4	W10846623		Assembly, Orifice Holder (left Rear & Right Front)				$ 111.86
5	W10883622		Holder, Orifice (aux) (right Rear)				$ 111.86
6	W10323247		Trim, Island				$ 395.07
7	W11344501		Grate, Burner (black)   (Replaces: W10276551)			Immediately	$ 218.28
8	9759322		Pad, Grate		Appelez-nous	-
9	W10276494		Bezel				$ 80.42
10	W10189105		Filler, Cooktop		Appelez-nous	-
11	W10130760		Bracket, Moving Console (left)				$ 75.94
12	W10464535		Assembly, Keypad				$ 1,125.19
13	WPW10256034		Cap, Burner (black (left Front))   (Replaces: W10256034)				$ 138.19
14	W11106799		Spreader, Flame (left Front)   (Replaces: W10879806)			Immediately	$ 97.21
15	W11684564		Spring, Electrode (left Front, Left Rear, Right Front)   (Replaces: W10827923)			Immediately	$ 12.65
16	W10854967		Electrode, Burner (right Rear)   (Replaces: 8286725)			Immediately	$ 48.38
17	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 311.25
18	W10352969		Cooktop (black (left))				$ 335.75
19	3196265		Screw   (Replaces: 3400099)		Appelez-nous	-
20	W10271524		T-strip				$ 212.34
21	W10323248		Insert, Island Trim				$ 268.00
22	W11241675		Grate, Filler   (Replaces: W10276495)				$ 194.76
23	W10789952		Panel, Control				$ 573.45
24	W10145568		Knob, Dual (stainless)				$ 52.92
25	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
26	8286930		Gasket, Orifice				$ 95.73
27	8286863		Spring, Electrode (right Rear)				$ 76.92
28	W10145454		Knob, Single (stainless)				$ 46.94
29	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
30	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
31	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
32	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
11A	W10130759		Bracket, Moving Console (right)				$ 75.94
13A	WPW10256032		Cap, Burner (black (left Rear & Right Front))   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black (right Rear))   (Replaces: W10364463)			Immediately	$ 55.85
14A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 101.02
14B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 149.87
18A	W10352968		Cooktop (black (right))				$ 337.26
1A	W10821591		Instructions, Installation		Appelez-nous	-
1B	W10403308		Sheet, Tech (english)		Appelez-nous	-
1C	W10403309		Sheet, Tech (french)		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	W10819958		Orifice (1.2k) (left Front, Low)   (Replaces: W10256132)				$ 97.77
2B	W11051480		Orifice (15k) (left Rear & Right Front)   (Replaces: W10364221)				$ 90.69
2C	W10791075		Orifice (5k) (right Rear)   (Replaces: W10282663)				$ 103.68
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W10116168		Harness, Main			Immediately	$ 284.61
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10624584		Cord, Power				$ 189.57
NI	4450800		Screw, Grounding				$ 13.47
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W11675299		Tie, Cable   (Replaces: W10368807)				$ 13.53
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
NI	W10763500		Harness, Ignition (includes 3 Igniters)			Immediately	$ 183.87
NI	W10145988		Harness, Switch				$ 168.55
NI	W10344051		Harness, Communication				$ 133.32

    View Diagram in Separate Window       Print Part List
