SELECT A DIAGRAM

01 - Cover Sheet

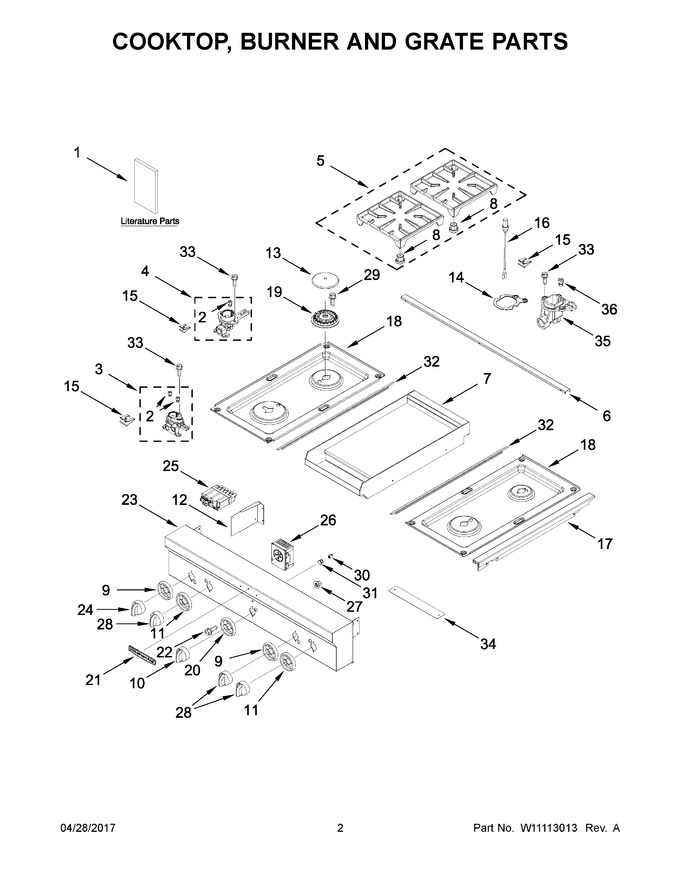

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10899357		Instructions, Installation		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front, High)				$ 90.69
3	W10846622		Assembly, Orifice Holder (left Front)				$ 111.86
4	W10846623		Assembly, Orifice Holder (left Rear & Right Front)				$ 111.86
5	W11569347		Assembly, Grate (black)   (Replaces: W10221252)				$ 365.12
6	W10269217		Trim, Island				$ 308.49
7	W10625221		Module, Griddle				$ 1,457.32
8	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 10.60
9	W10261510		Bezel, Front				$ 55.11
10	W10250390		Knob, Griddle				$ 36.98
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10498407		Bracket, Spark Module				$ 78.97
13	WPW10256034		Cap, Burner (black (left Front))   (Replaces: W10256034)				$ 138.19
14	8286930		Gasket, Orifice				$ 95.73
15	W11684564		Spring, Electrode (left Front, Left Rear, Right Front)   (Replaces: W10827923)			Immediately	$ 12.65
16	W10146042		Electrode, Burner (right Rear)				$ 19.74
17	W10226014		Trim, Side (left)				$ 261.16
18	W10352969		Cooktop (black (left))				$ 335.75
19	W11106799		Spreader, Flame (left Front)   (Replaces: W10879806)			Immediately	$ 97.21
20	W10261515		Bezel, Griddle		Appelez-nous	-
21	W10201187		Nameplate				$ 91.98
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
23	W10778228		Assembly, Console		Appelez-nous	-
24	W11244176		Knob, Dual (black (left Front))   (Replaces: W10250389)				$ 78.37
25	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 385.00
26	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 351.97
27	7103P166-60		Nut				$ 18.56
28	W11177673		Knob, Single (black (left Rear, Right Front, Right Rear))   (Replaces: W10250391)				$ 90.55
29	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
30	W10116114		Light, Indicator Housing			Immediately	$ 93.57
31	W10116115		Lens, Indicator Light				$ 7.86
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP3177991		Screw (left Front, Left Rear, Right Front)   (Replaces: 3177991)			Immediately	$ 7.55
34	W10250433		Plate, Cover		Appelez-nous	-
35	W10883622		Holder, Orifice (aux) (right Rear)				$ 111.86
36	W10791075		Orifice (5k) (right Rear)   (Replaces: W10282663)				$ 103.68
13A	WPW10256032		Cap, Burner (black (left Rear & Right Front))   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black (right Rear))   (Replaces: W10364463)			Immediately	$ 55.85
15A	8286863		Spring, Electrode (right Rear)				$ 76.92
17A	W10226015		Trim, Side (right)				$ 263.19
18A	W10352968		Cooktop (black (right))				$ 337.26
19A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 101.02
19B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 149.87
1A	W10849069		Guide, Use & Care		Appelez-nous	-
1B	W10403307		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	W10819958		Orifice (1.2k) (left Front, Low)   (Replaces: W10256132)				$ 97.77
2B	W11051480		Orifice (15k) (left Rear & Right Front)   (Replaces: W10364221)				$ 90.69
33A	W10491985		Screw (right Rear)   (Replaces: 3196160)			Immediately	$ 7.55
NI	W10624584		Cord, Power				$ 189.57
NI	W10116096		Harness, Griddle		Appelez-nous	-
NI	W10763501		Harness, Ignition (includes 3 Igniters)				$ 190.30
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10116174		Harness, Wire (cooktop)			Immediately	$ 159.41
NI	4450800		Screw, Grounding				$ 13.47
NI	W10283996		Assembly, Injector		Appelez-nous	-
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53

    View Diagram in Separate Window       Print Part List
