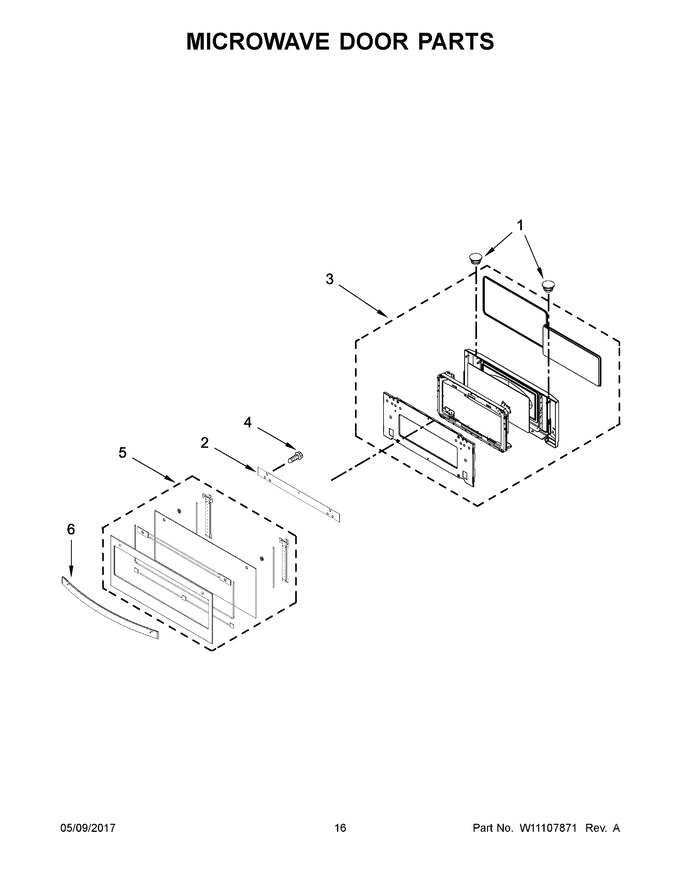

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	W10359769		Foam, Door Handle				$ 14.76
3	W11684570		Assembly, Inner Door   (Replaces: W10687342)			Immediately	$ 593.74
4	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
5	W11110513		Assembly, Outer Door (black)   (Replaces: W10866274)				$ 478.18
6	W11110491		Assembly, Handle (black)   (Replaces: W11022638)				$ 188.91
5A	W11110514		Assembly, Outer Door (white)   (Replaces: W10866275)		Appelez-nous	-
5B	W11110515		Assembly, Outer Door (stainless)   (Replaces: W10866273)				$ 422.99
5C	W11110516		Assembly, Outer Door (black Stainless)   (Replaces: W11028413)				$ 469.82
6A	W11110492		Assembly, Handle (white)   (Replaces: W11022639)				$ 188.91
6B	W11110499		Assembly, Handle (stainless)   (Replaces: W10875206)			Immediately	$ 188.20
6C	W11110500		Assembly, Handle (black Stainless)   (Replaces: W10903342)				$ 195.52
