View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet, Door And Liner Parts
03 - Evaporator, Grid, And Water Parts
04 - Pump Parts

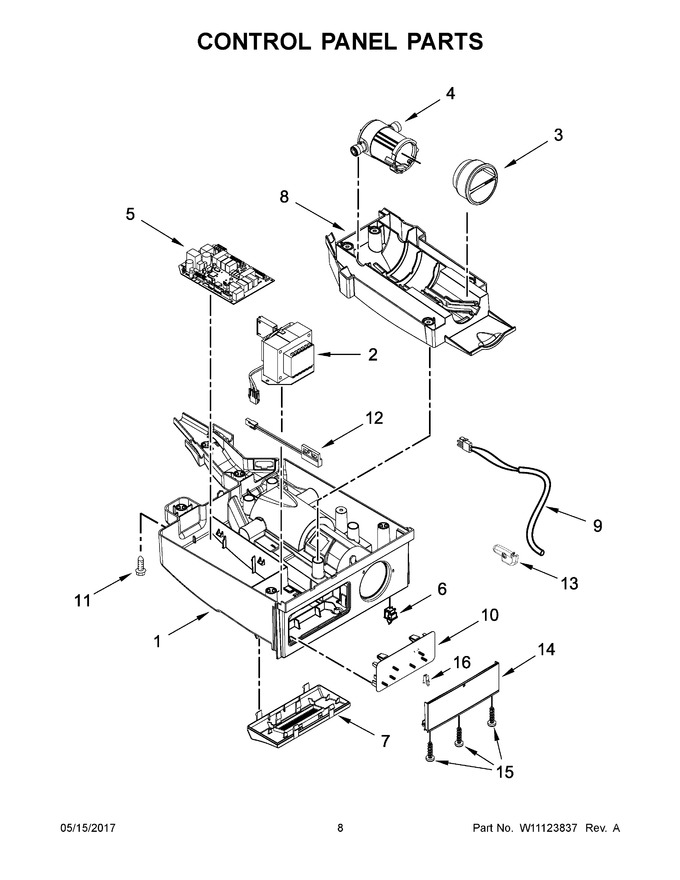

05 - Control Panel Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10475405 | Housing, Control |
|
Immediately | $ 172.81 | ||||
| 2 | WPW10485951 | Transformer (Replaces: W10485951) |
|
$ 343.65 | |||||
| 3 | W10800355 | Filter Cap |
|
- | |||||
| 4 | W11266112 | Assembly, Water Filter Housing (Replaces: W10555394) |
|
$ 226.89 | |||||
| 5 | W11034363 | Control, Electronic (Replaces: W10485960) |
|
Immediately | $ 415.53 | ||||
| 6 | W11291138 | Switch, Rocker (Replaces: 12466104) |
|
Immediately | $ 36.67 | ||||
| 7 | W10492487 | Assembly, Diamond Led |
|
$ 292.57 | |||||
| 8 | W10475416 | Cover, Filter |
|
$ 122.46 | |||||
| 9 | WPW10511923 | Thermistor, Bin (Replaces: W10511923) |
|
Immediately | $ 64.91 | ||||
| 10 | W10865633 | Assembly, Control (Replaces: W10820968) |
|
$ 495.16 | |||||
| 11 | WP3400884 | Screw (stainless) (Replaces: 3400884) |
|
$ 8.10 | |||||
| 12 | W11171663 | Switch, Reed (Replaces: W10485964) |
|
$ 33.48 | |||||
| 13 | W10526623 | Clamp, Thermistor |
|
- | |||||
| 14 | W10545363 | Assembly, Fascia |
|
$ 198.58 | |||||
| 15 | WP9741232 | Screw (Replaces: 9741232N) |
|
Immediately | $ 5.07 | ||||
| 16 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 120.84 |
