01 - Cover Sheet


02 - Top And Cabinet Parts

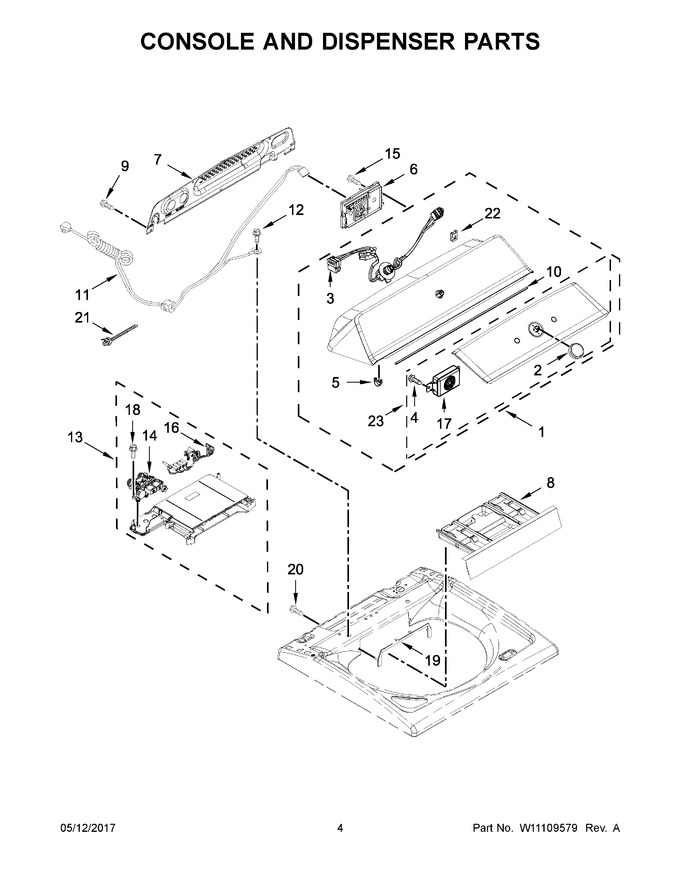

03 - Console And Dispenser Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11112656		Console (white)   (Replaces: W11035014)				$ 651.98
2	W10853910		Assembly, Timer Knob (chrome)   (Replaces: W10727011)				$ 53.94
3	W11199207		Harness, Ui   (Replaces: W10771770)				$ 170.43
4	WP9740849		Screw   (Replaces: 9740849)				$ 7.30
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11400681		Control Unit Assembly, Machine And Motor   (Replaces: W11030478)				$ 520.96
7	W10611544		Panel, Console Rear Cover				$ 341.23
8	W10919352		Assembly, Dispenser Drawer (white)   (Replaces: W10794835)			Immediately	$ 114.70
9	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
10	W10618933		Seal, Console		Appelez-nous	-
11	W10859955		Cord, Power   (Replaces: W10479821)				$ 82.73
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W11172234		Assembly, Housing   (Replaces: W10854688)			Immediately	$ 205.99
14	W11165546		Valve, Water Inlet   (Replaces: W10758828)			Immediately	$ 108.31
15	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
16	W11193817		Harness, Valve   (Replaces: W10849297)			Immediately	$ 186.35
17	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
18	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.80
19	W10601845		Assembly, Dispenser Bezel (white)				$ 42.59
20	W11700520		Screw   (Replaces: 3400061)				$ 14.28
21	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.98
22	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
23	W11115285		Assembly, Fascia (grey)   (Replaces: W11035070)				$ 523.37
