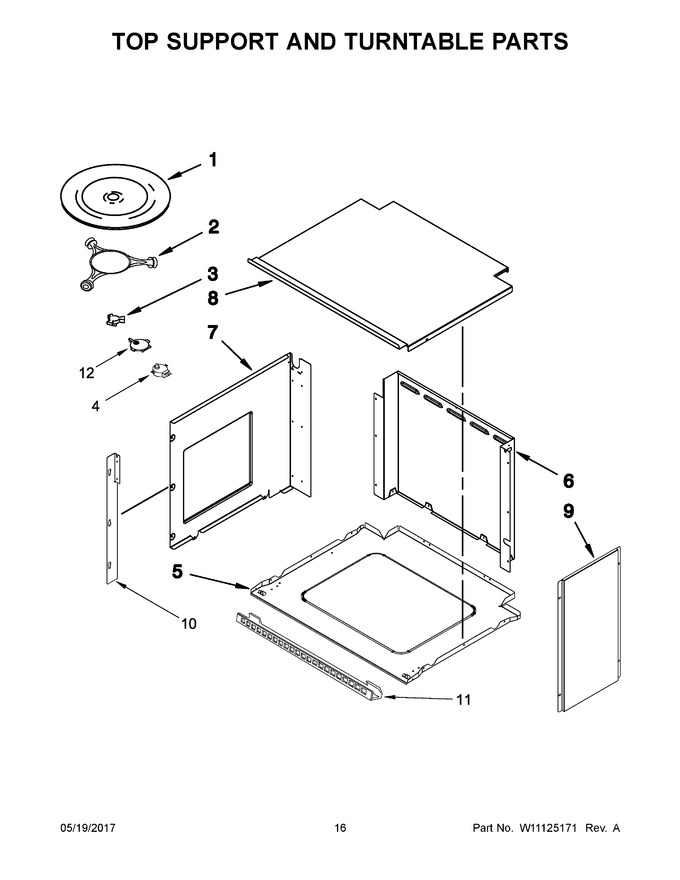

09 - Top Support And Turntable Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11790998		Tray, Cook   (Replaces: 461967720541)				$ 55.02
2	W11110134		Ring, Turntable   (Replaces: W10367316)			Immediately	$ 74.00
3	W11179756		Drive, Turntable   (Replaces: W10545578)			Immediately	$ 25.31
4	W10911403		Motor, Turntable   (Replaces: 461967848971)			Immediately	$ 117.53
5	W10176063		Retainer, Bottom		Appelez-nous	-
6	W10186984		Cover, Rear		Appelez-nous	-
7	W10176065		Retainer, Side (left)		Appelez-nous	-
8	W10175999		Panel, Top Retainer		Appelez-nous	-
9	W10176066		Cover, Service		Appelez-nous	-
10	461967013732		Trim, Side (left)		Appelez-nous	-
11	461968973251		Vent, Top				$ 80.34
12	W11676353		Adapter, Turntable Motor   (Replaces: 461967753742)			Immediately	$ 22.86
10A	461967013722		Trim, Side (right)		Appelez-nous	-
7A	W10176064		Retainer, Side (right)		Appelez-nous	-
