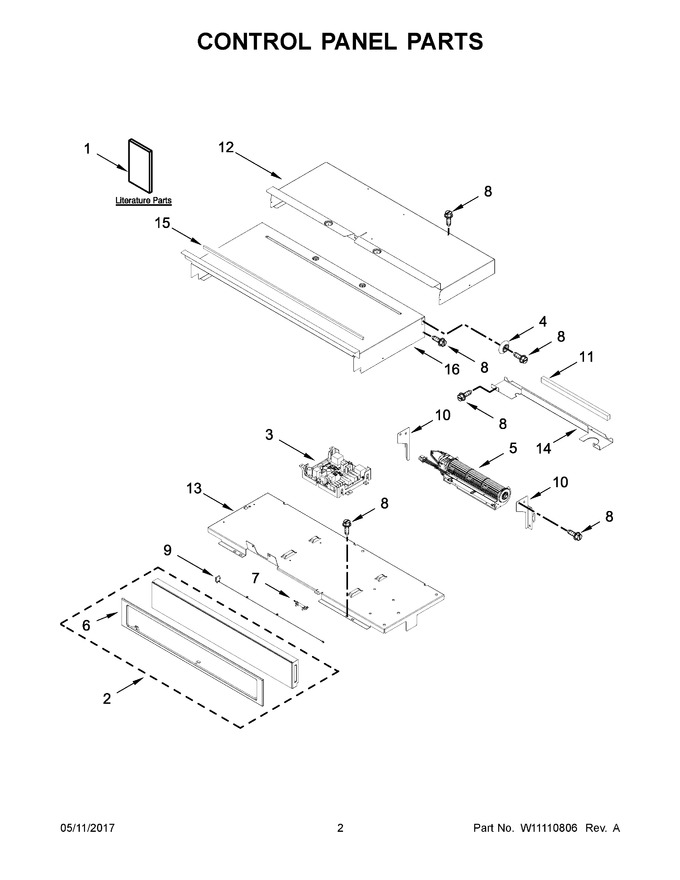

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11040298 | Instructions, Installation |
|
- | |||||
| 2 | W11353759 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W10871564) |
|
$ 797.30 | |||||
| 3 | W11261165 | Manager, Appliance (with Power Supply) (Replaces: W11040194) |
|
Immediately | $ 349.13 | ||||
| 4 | W10618105 | Spacer, Lateral |
|
- | |||||
| 5 | W11248652 | Blower (Replaces: W10850518) |
|
Immediately | $ 241.54 | ||||
| 6 | W11026970 | Skin, Control Panel (black) |
|
- | |||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10545255) |
|
Immediately | $ 27.91 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | W11537624 | Antenna (Replaces: W11044576) |
|
$ 106.06 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10728475 | Gasket, Rubber |
|
$ 38.13 | |||||
| 12 | W10904156 | Chassis, Cover Top Back 30 |
|
- | |||||
| 13 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | WPW10657548 | Gasket, Rubber (Replaces: W10657548) |
|
$ 89.66 | |||||
| 16 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 138.81 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11097840 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11040302 | Guide, Use & Care |
|
- | |||||
| 1C | W11097305 | Guide, Internet Connectivity |
|
- | |||||
| 1D | W11046178 | Sheet, Tech |
|
- | |||||
| 1E | W11046185 | Diagram, Wiring |
|
- | |||||
| 2A | W11353762 | Assembly, Control Panel (includes Overlay) (white) (Replaces: W10871565) |
|
$ 793.26 | |||||
| 2B | W11428583 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W10871563) |
|
Immediately | $ 911.43 | ||||
| 2C | W11428584 | Assembly, Control Panel (includes Overlay) (black Stainless) (Replaces: W10893999) |
|
Immediately | $ 914.05 | ||||
| 6A | W11109371 | Skin, Control Panel (white) (Replaces: W11026969) |
|
- | |||||
| 6B | W11113207 | Skin, Control Panel (stainless) (Replaces: W10899877) |
|
Immediately | $ 240.74 | ||||
| 6C | W11109373 | Skin, Control Panel (black Stainless) (Replaces: W10893985) |
|
$ 245.84 | |||||
| NI | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 8.30 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11225369 | Harness, Main (Replaces: W10881980) |
|
$ 231.26 | |||||
| NI | W11132989 | Harness, Door Latch (Replaces: W10775068) |
|
$ 118.98 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 32.95 | |||||
| NI | W11233570 | Harness, Console (Replaces: W10834514) |
|
Immediately | $ 234.66 | ||||
| NI | WP4450952 | Conduit, Single (Replaces: 4450952) |
|
$ 240.98 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 40.71 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 21.12 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 4452400 | Strap, Lead Ground |
|
$ 45.42 |
