Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10348409 Screw   (Replaces: W10348409) In-Stock Immediately $ 8.20

2 W11467573 Inner Door Assembly (also Order Item 4)   (Replaces: W10514354) Appelez-nous -
3 W11651613 Cover, Dispenser   (Replaces: W10921030) Special Order $ 62.28

4 WPW10254545 Gasket, Vent   (Replaces: W10254545) Special Order $ 12.19

5 W10919772 Deflector, Vent (also Order Item 4) Special Order $ 69.35

6 W11229687 Latch, Dispenser   (Replaces: W10545345) Special Order $ 69.97

7 W10832776 Wiring Harness Appelez-nous -
8 WPW10177098 Screw   (Replaces: W10177098) In-Stock Immediately $ 8.02

9 WP8269296 Seal, Door/console   (Replaces: 8269296) In-Stock Immediately $ 188.17

10 W10514359 Solenoid, Dispenser Appelez-nous -
11 W10544186 Retainer, Solenoid Special Order $ 22.76

12 W11398648 Actuator, Dispenser   (Replaces: W10510899) Special Order $ 70.27


    View Diagram in Separate Window     Print Icon   Print Part List

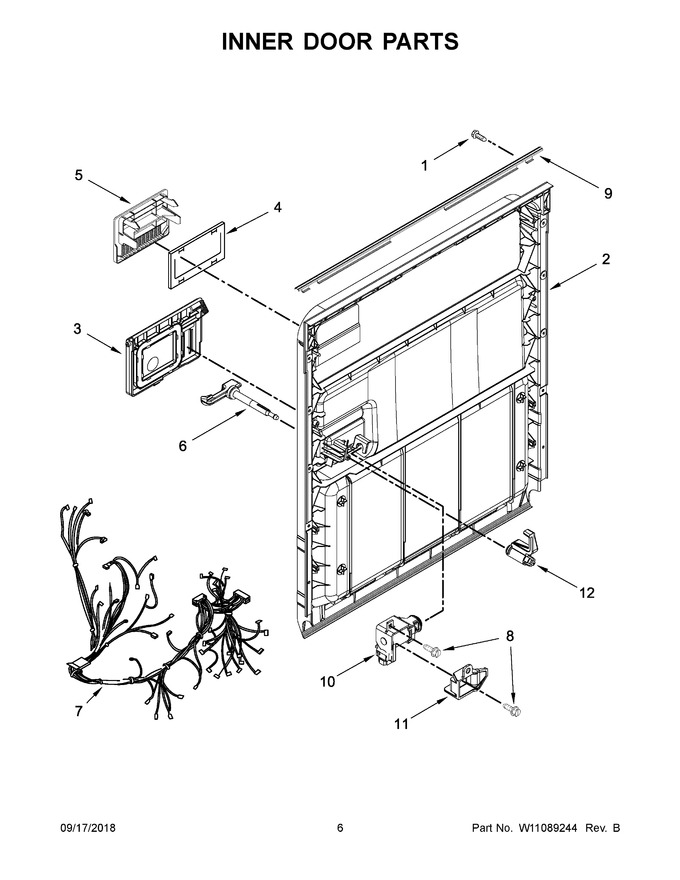

Diagram for WDF130PAHW0
