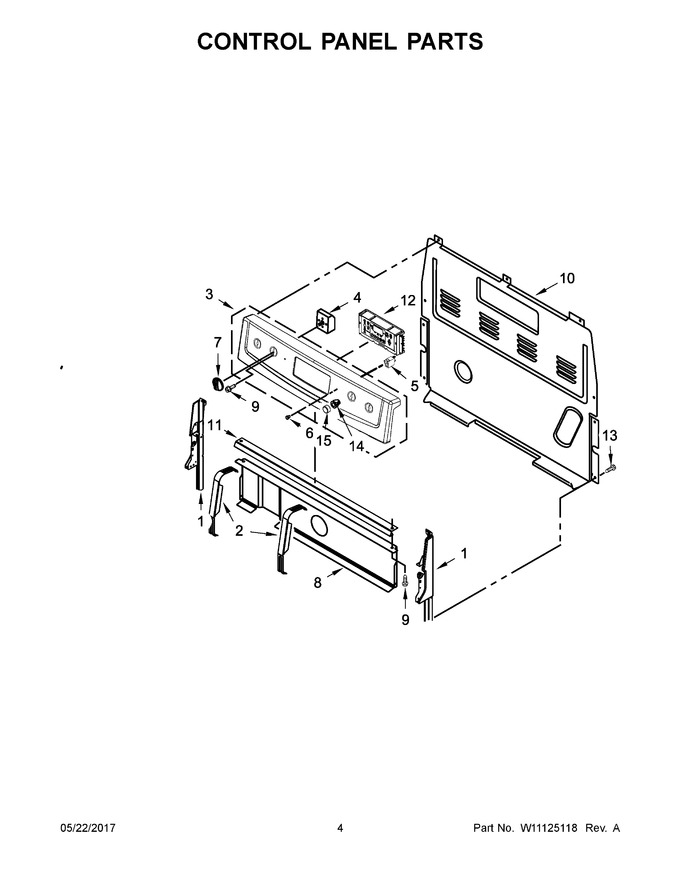

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 3 | W10370097 | Console (white) |
|
- | |||||
| 4 | W10857622 | Switch, Infinite (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10676217 | Knob (white) |
|
$ 76.02 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | WPW10586735 | Panel, Control (white) (Replaces: W10586735) |
|
$ 477.07 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W10217760 | Bezel, Keep Warm (white) |
|
$ 25.91 | |||||
| 15 | 9757492 | Button, Keep Warm (white) |
|
$ 96.01 | |||||
| 12A | WPW10586736 | Panel, Control (black) (Replaces: W10586736) |
|
$ 477.07 | |||||
| 12B | WPW10586737 | Panel, Control (stainless) (Replaces: W10586737) |
|
$ 499.78 | |||||
| 14A | W10217758 | Bezel, Keep Warm (black) |
|
$ 28.65 | |||||
| 14B | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 15A | 9758491 | Button, Keep Warm (black) |
|
$ 19.74 | |||||
| 15B | W10918209 | Button, Keep Warm (grey) (Replaces: W10315961) |
|
$ 20.21 | |||||
| 1A | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1B | W11219370 | Endcap (white (right)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1C | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 3A | W10370093 | Console (black) |
|
- | |||||
| 3B | W10339403 | Console (stainless) |
|
- | |||||
| 4A | W10911303 | Switch, Infinite (right Rear And Left Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 7A | W10676216 | Knob (black) |
|
$ 76.02 | |||||
| 7B | W10854249 | Knob (stainless) (Replaces: W10676227) |
|
Immediately | $ 22.56 |
