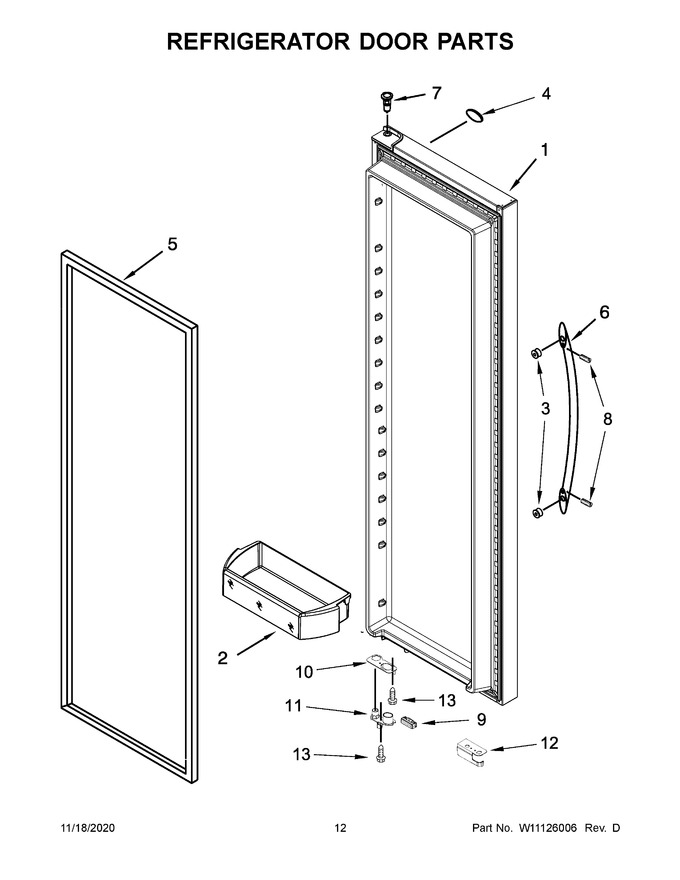

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11038913 | Door, Refrigerator (includes Item 5) (white) (Replaces: W11038913) |
|
$ 721.58 | |||||
| 2 | WPW10710203 | Bin, Gallon Door (Replaces: W10710203) |
|
Immediately | $ 37.37 | ||||
| 3 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.51 | ||||
| 4 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 5 | WPW10247884 | Gasket, Door (beige) (Replaces: W10247884) |
|
$ 322.97 | |||||
| 6 | W11432251 | Handle (white) (Replaces: W11289637) |
|
$ 189.72 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 8 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 9 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 14.93 | |||||
| 10 | W11037957 | Bracket, Door Stop (Replaces: W10888898) |
|
$ 80.24 | |||||
| 11 | WPW10248011 | Closer, Upper Cam Door (white) (Replaces: W10248011) |
|
$ 12.93 | |||||
| 12 | W10789144 | Cover, Door Stop (white) |
|
$ 19.38 | |||||
| 13 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 11A | WPW10257201 | Closer, Upper Cam Door (black) (Replaces: W10257201) |
|
$ 12.93 | |||||
| 11B | WPW10257203 | Closer, Upper Cam Door (grey) (Replaces: W10257203) |
|
$ 12.96 | |||||
| 12A | W10789145 | Cover, Door Stop (black) |
|
$ 19.37 | |||||
| 12B | W11661847 | Cover, Door Stop (grey) (Replaces: W10789147) |
|
Immediately | $ 31.71 | ||||
| 1A | LW11038911 | Door, Refrigerator (includes Item 5) (black) (Replaces: W11038911) |
|
$ 721.58 | |||||
| 1B | LW11038910 | Door, Refrigerator (includes Item 5) (black Stainless) (Replaces: W11038910) |
|
Immediately | $ 746.84 | ||||
| 1C | LW11037738 | Door, Refrigerator (includes Item 5) (stainless) (Replaces: W11037738) |
|
$ 746.84 | |||||
| 5A | WPW10249912 | Gasket, Door (black) (Replaces: W10249912) |
|
$ 329.18 | |||||
| 5B | W10355582 | Gasket, Door (grey) (Replaces: W10249916) |
|
$ 341.26 | |||||
| 6A | W11450221 | Handle (black) (Replaces: W11289638) |
|
$ 189.65 | |||||
| 6B | W11450223 | Handle (black Stainless) (Replaces: W11289639) |
|
Immediately | $ 188.98 | ||||
| 6C | W11163764 | Handle (stainless) (Replaces: W11045530) |
|
Immediately | $ 151.77 | ||||
| 9A | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 |
