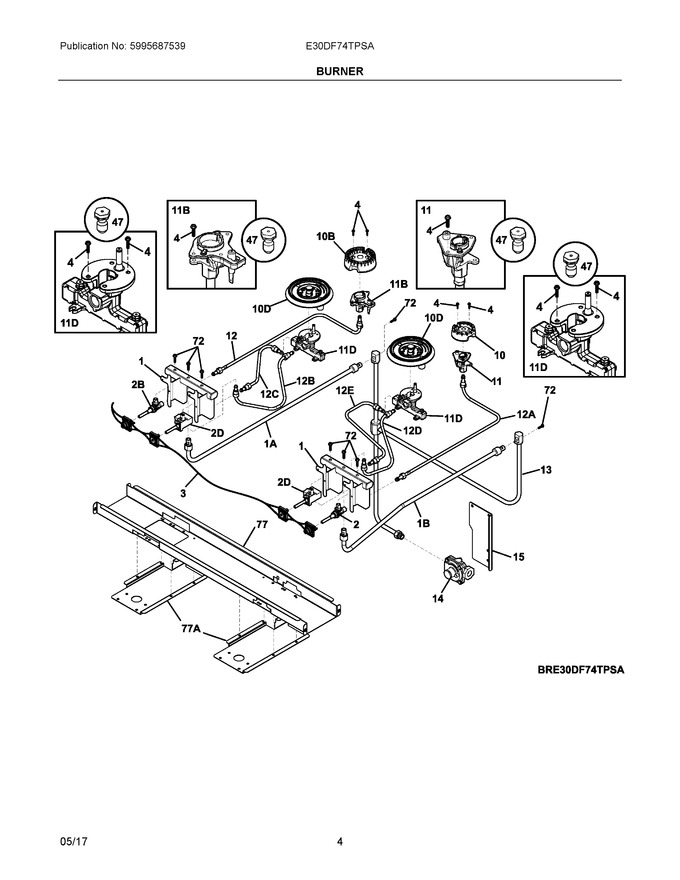

03 - Burner


04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304509807		Manifold, Tube, 30", 4 Valve		Appelez-nous	-
2	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 91.84
3	5304509821		Harness Assembly, Ignition, W/switches				$ 101.59
4	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 16.85
10	316438200		Burner, Sealed, 5k			Immediately	$ 63.00
11	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 12.44
12	318366728		Tube, 14k Burner, Lh Rear		Appelez-nous	-
13	318360601		Tube, Regulator, To Manifold				$ 157.35
14	318122708		Regulator, Pressure				$ 137.18
15	5304498464		Bracket, Regulator		Appelez-nous	-
47	808695303		Lp Conversion Kit		Appelez-nous	-
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 15.75
77	318355502		Bracket, Channel Mtg.		Appelez-nous	-
10B	316438600		Burner, Sealed, 14k				$ 88.67
10D	5304501023		Burner Assembly, G5			Immediately	$ 184.43
11B	316543204		Ignitor/orifice Assy., Top Burner, 14k				$ 13.70
11D	316440100		Ignitor/orifice Assy., Top Burner, Twin, 17k, W/holder				$ 186.64
12A	318366727		Tube, Burner, Rh Rear, 5k		Appelez-nous	-
12B	807544011		Tube, Burner, Left Front, Dual Main		Appelez-nous	-
12C	807544012		Tube, Burner, Left Front, Dual Simmer		Appelez-nous	-
12D	807544013		Tube, Burner, Right Front, Dual Main		Appelez-nous	-
12E	807544014		Tube, Burner, Right Front, Dual Simmer		Appelez-nous	-
1A	318305403		Tube, Manifold, Lh, Interconnect				$ 93.87
1B	318305404		Tube, Manifold, Rh, Interconnect				$ 77.96
2B	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 78.36
2D	316272310		Valve, Dual Burner, Twin				$ 208.13
77A	318363803		Bracket, Channel Mtg		Appelez-nous	-
NI	5304509841		Harness, Wiring, Ignitor Module		Appelez-nous	-
NI	316566901		Sleeve, Insulator				$ 14.32
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
