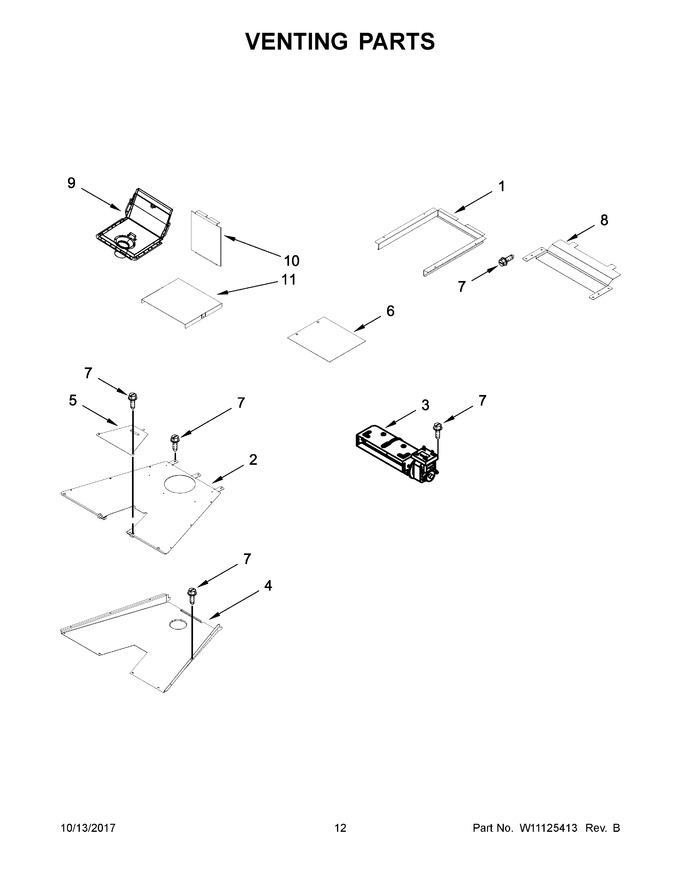

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10145363		Duct, Primary Air (30")		Appelez-nous	-
2	W10299182		Vent, Cooling Top (30")			Immediately	$ 156.38
3	WPW10245511		Blower 60mm   (Replaces: W10245511)			Immediately	$ 306.02
4	W10349015		Vent, Cooling Bottom (30")			Immediately	$ 203.33
5	W10160875		Plate, Cooling Latch		Appelez-nous	-
6	W10239444		Seal, Control		Appelez-nous	-
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	W10145748		Bracket, Blower (30")		Appelez-nous	-
9	W10340579		Vent, Chimney Box (30" / 36")		Appelez-nous	-
10	W10246087		Insulation, Chimney		Appelez-nous	-
11	W10246086		Retainer, Insulation		Appelez-nous	-
1A	W10145364		Duct, Primary Air (18")		Appelez-nous	-
2A	W10246081		Vent, Cooling Top (18")		Appelez-nous	-
4A	W10349047		Vent, Cooling Bottom (18")		Appelez-nous	-
8A	W10160844		Bracket, Blower (18")		Appelez-nous	-
9A	W10340583		Vent, Chimney Box (18")		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
