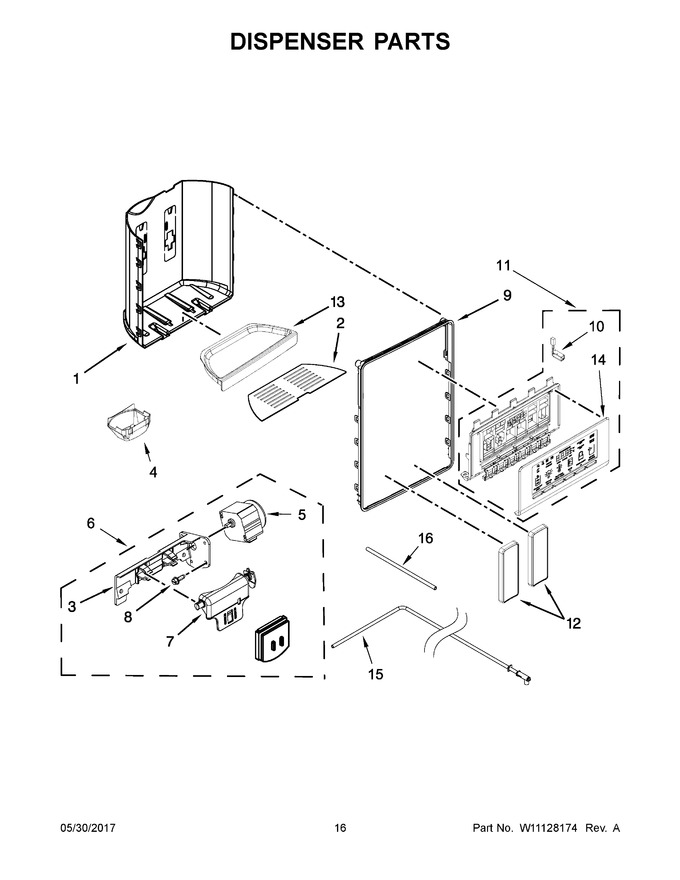

09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10276190		False Wall, Dispenser (black)		Appelez-nous	-
2	WPW10276223		Grate, Drip Tray (black)   (Replaces: W10276221)				$ 57.37
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 104.12
6	W11096215		Assembly, Separator   (Replaces: W10781993)		Appelez-nous	-
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10276187		Ring, Trim (black)				$ 26.45
10	W11216993		Lamp, Led   (Replaces: W10820003)			Immediately	$ 43.24
11	WPW10758681		User Interface Assembly   (Replaces: W10758681)				$ 448.80
12	W10370385		Pad, Ice And Water (black)		Appelez-nous	-
13	W10276194		Tray, Drip (black)				$ 69.36
14	W10276229		Cover, Front (black)				$ 273.65
15	WPW10386778		Assembly, Water Fitting   (Replaces: W10386778)			Immediately	$ 132.74
16	W11620106		Tube, Water   (Replaces: W10691730)				$ 117.84
12A	WPW10370594		Pad, Ice And Water (grey)   (Replaces: W10370594)				$ 310.61
13A	W11246841		Tray, Drip (grey)   (Replaces: W10276224)				$ 60.29
1A	W10276228		False Wall, Dispenser (grey)		Appelez-nous	-
2A	WPW10276223		Grate, Drip Tray (grey)   (Replaces: W10276223)				$ 57.37
9A	W10276227		Ring, Trim (grey)				$ 62.97
