SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

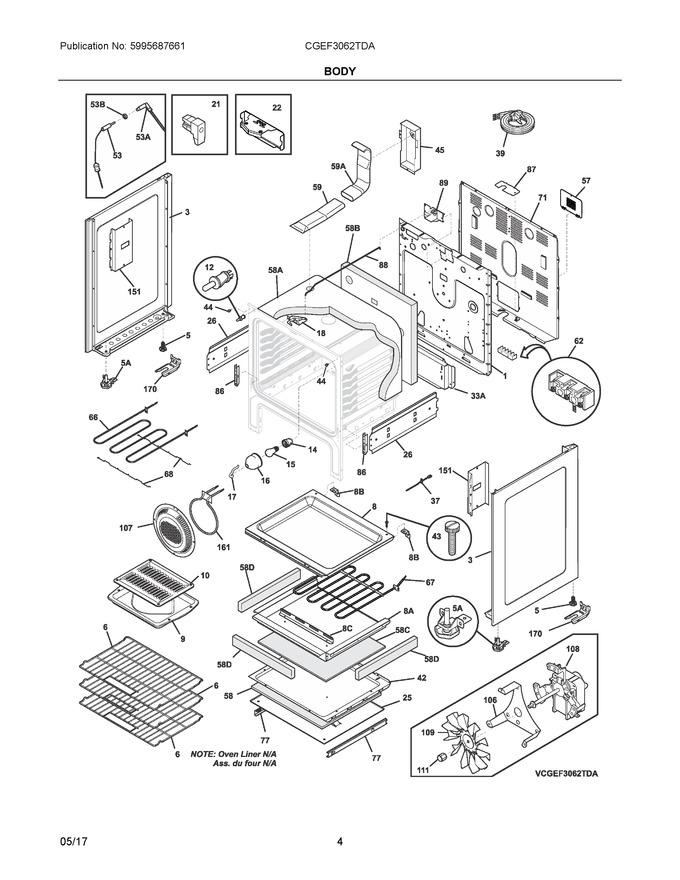

03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401803		Panel, Main Back		Appelez-nous	-
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400118)			Immediately	$ 149.65
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 30.55
6	316498005		Rack, Oven, (2)				$ 150.83
8	316505602		Panel, Oven Bottom   (Replaces: 316505601)				$ 158.06
9	316081900		Pan, Broiler Optional Accessory				$ 65.89
10	316082000		Insert, Broiler Pan Optional Accessory				$ 68.85
12	316445500		Switch, Oven Light, Door Frame			Immediately	$ 60.82
14	316116400		Receptacle, Oven Light			Immediately	$ 62.33
15	316538904		Lamp, Oven Light   (Replaces: 316538901)			Immediately	$ 22.75
16	5304524341		Lens, Oven Light, Glass   (Replaces: 318406100)			Immediately	$ 19.07
17	316087500		Retainer, Lens				$ 63.00
18	316405800		Latch Assembly, Oven Door			Immediately	$ 63.04
21	316408000		Clip, Bodyside				$ 20.22
22	316286300		Bracket-bodyside, (2)				$ 19.69
25	316505900		Shield, Lower, Bake		Appelez-nous	-
26	316409000		Shield, Warmer Side, (2)				$ 44.47
37	316490000		Probe, Oven Temp			Immediately	$ 64.78
39	318113111		Cord, Electric				$ 95.55
42	316407700		Shield, Wool, Lower				$ 145.77
43	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 14.96
44	316517600		Bumper, Front, Main				$ 13.39
45	316234100		Shield, Wire, Vent Tube				$ 77.96
53	5304503737		Probe, Meat Temp, Black				$ 110.37
57	316283600		Cover, Access				$ 13.89
58	316509500		Insulation, Bake Element				$ 45.09
59	316208401		Vent Tube, Assembly, W/catalyst				$ 215.71
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	316430900		Element, Broil, 4000w			Immediately	$ 284.67
67	316505500		Element, Bake, 3000w			Immediately	$ 288.05
68	316429100		Support, Element, Broil				$ 69.46
71	316283204		Shield, Rear Wall   (Replaces: 316283200)				$ 62.36
77	316456700		Glide, Warmer Drawer, Outer/rh & Lh, (2)			Immediately	$ 67.73
86	316441300		Receptacle, Hinge				$ 24.41
87	316081202		Bracket, Cable Mtg				$ 5.51
88	316203500		Rod, Auto Latch				$ 80.33
89	316464301		Motor-latch				$ 188.06
106	316404100		Bracket, Motor Mtg.				$ 70.78
107	316026701		Cover, Fan				$ 454.32
108	316256100		Motor-fan			Immediately	$ 234.64
109	318398302		Fan Blade			Immediately	$ 32.34
111	316136600		Nut, Fan Retainer			Immediately	$ 21.26
151	316404601		Shield, Bodyside				$ 23.63
161	316211603		Element, Convection Fan, 350 W				$ 284.29
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 21.01
33A	316402100		Shield, Rear Wall, Lower				$ 47.30
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400119)			Immediately	$ 148.81
53A	316536904		Receptacle, Probe			Immediately	$ 134.43
53B	316247700		Nut, Mounting				$ 20.22
58A	316406604		Insulation, Oven Wrapper   (Replaces: 316406601)			Immediately	$ 77.52
58B	316406503		Insulation, Oven Back				$ 125.21
58C	316509600		Insulation, Lower Shield		Appelez-nous	-
58D	316509700		Insulation, Oven Bottom				$ 66.94
59A	316208304		Tube, Oven Vent, Upper				$ 88.99
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316498900)			Immediately	$ 16.76
8A	316505701		Base, Bake Element				$ 271.60
8B	316506000		Bracket, Support, Oven Bottom, (2)				$ 5.06
8C	316505801		Support, Element				$ 28.31
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 15.75
NI	316282700		Screw, W/washer, 8-18				$ 11.03
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	5304509319		Harness, Wiring, Main		Appelez-nous	-
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 14.32
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NI	5303289910		Screw, Truss Sqdr, 8a X 1				$ 6.30
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 13.39
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 14.32
NIBA	316534100		Washer, Flat, Meat Probe				$ 16.54
NIC	316541700		Template, Anti-tip		Appelez-nous	-
