SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

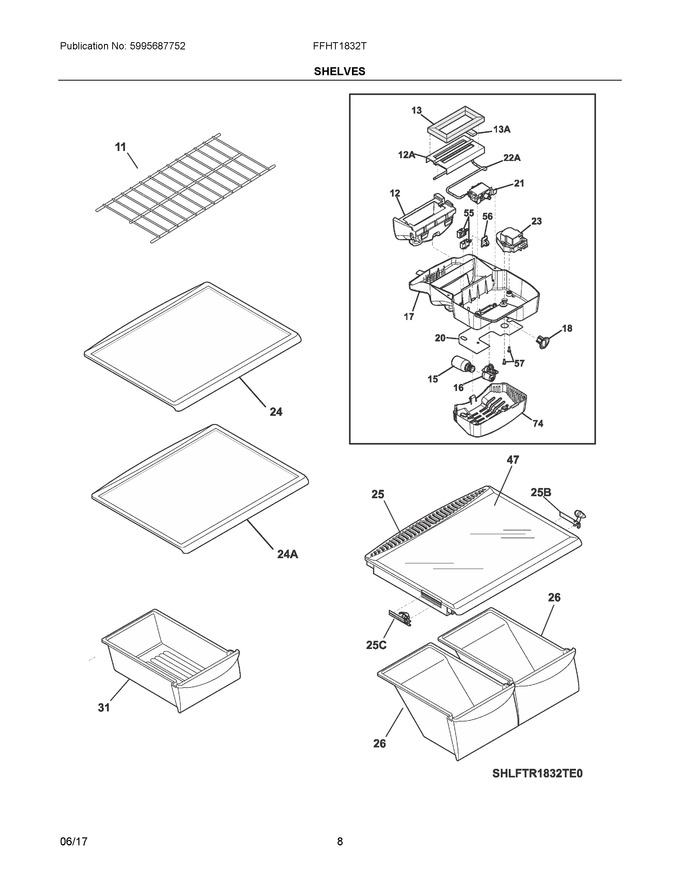

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 102.00
12	5304511163		Diffuser-air				$ 42.81
13	242240603		Gasket Seal				$ 87.71
15	5304517886		Light Bulb, Led   (Replaces: 5304498578)			Immediately	$ 81.18
16	240590403		Socket-light				$ 29.49
17	530451165		Control Box Housing		Appelez-nous	-
18	240360801		Knob, Temp Control				$ 43.95
20	5304511166		Heat Shield		Appelez-nous	-
21	241537107		Control Cold Foshan				$ 159.59
23	241705102		Timer-defrost			Immediately	$ 126.12
24	240358926		Shelf-"spill-safe", Sliding   (Replaces: 240358925)			Immediately	$ 143.52
25	240364787		Cover-crisper Pan			Immediately	$ 134.42
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 164.83
31	240530811		Pan-meat, W/o Graphics, Clear			Immediately	$ 150.86
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 50.55
55	530451167		Holder, Electronic Test		Appelez-nous	-
56	218515401		Clip-grille				$ 19.69
57	5304455649		Screw, Pan Hd, 6-20 X 0.438				$ 18.90
74	5304511168		Light Shield		Appelez-nous	-
12A	5304511164		Plate Diffuser		Appelez-nous	-
13A	240346703		Foam Tape   (Replaces: 240346712)				$ 2.53
22A	240468203		Sleeve-plastic				$ 87.63
24A	240358926		Shelf-"spill-safe", Sliding, W/pan Hanger			Immediately	$ 143.52
25B	241613501		Control-humidity, Rh			Immediately	$ 13.39
25C	241613502		Control-humidity, Lh				$ 53.09
NI	5304512146		Label-energy/energuide Estar		Appelez-nous	-
NIA	241705801		Spacer-shelf				$ 7.88

    View Diagram in Separate Window       Print Part List
