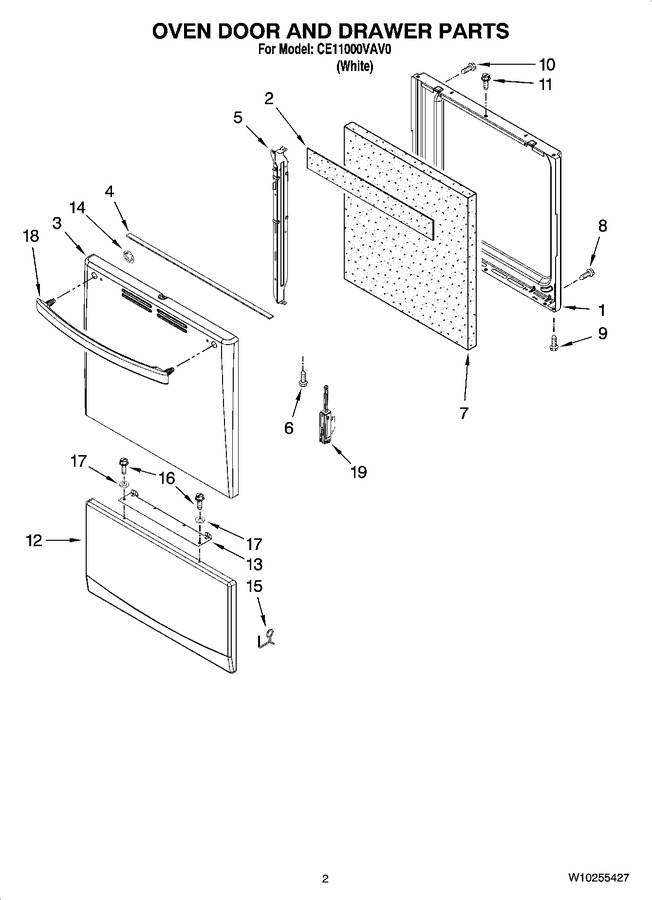

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98010414		Liner, Door		Appelez-nous	-
2	W10157839		Retainer, Insulation (7)		Appelez-nous	-
3	98009525		Panel, Oven Door		Appelez-nous	-
4	W10205601		Seal, Oven Door		Appelez-nous	-
5	98004629		Retainer (left)		Appelez-nous	-
5	98004564		Retainer (right)		Appelez-nous	-
6	WP59002061		Screw   (Replaces: 98004993)				$ 8.18
7	W10208853		Insulation, Door		Appelez-nous	-
8	W11206744		Screw   (Replaces: 98008699)				$ 14.23
9	WP3400805		Screw   (Replaces: 98004219)				$ 7.55
10	WP8533842		Screw   (Replaces: 8533842)				$ 7.30
11	3196166		Screw   (Replaces: 98006727)				$ 7.36
12	98009307		Door, Broil		Appelez-nous	-
13	W10208117		Bracket, Panel		Appelez-nous	-
14	WP98004650		Nut, Push   (Replaces: 98004650)				$ 7.30
15	6610364		Clip, Door				$ 11.83
16	W10837731		Screw   (Replaces: 98006633)				$ 8.30
17	W10216805		Washer (2)		Appelez-nous	-
18	WP98004947		Handle, Oven Door   (Replaces: 98004947)				$ 148.80
19	98017873		Hinge, Oven Door				$ 39.94
