01 - Cover Sheet

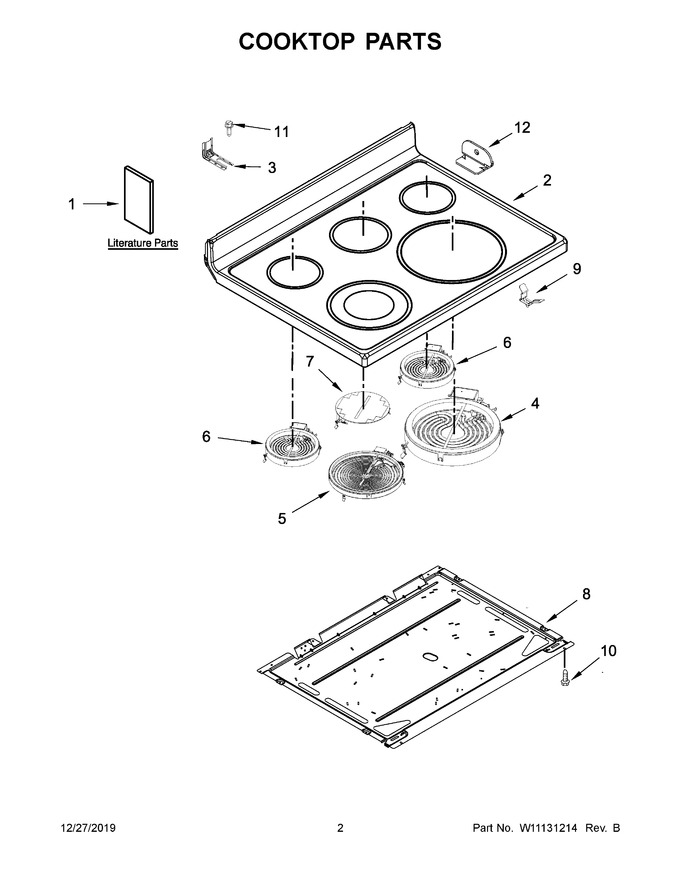

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10667166		Use And Care Guide		Appelez-nous	-
2	W10691698		Cooktop (black)   (Replaces: W10655916)			Immediately	$ 590.58
3	W11839019		Anti-tip Bracket   (Replaces: W11379945)			Immediately	$ 28.54
4	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 223.66
5	WPW10535150		Element (3000w, 1000/2000w) (left Front)   (Replaces: W10535150)			Immediately	$ 251.12
6	W11171119		Element (1200w) (right Rear And Left Rear)   (Replaces: 8273994)			Immediately	$ 182.23
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
12	W10607641		Bracket, Cooktop (left)				$ 33.52
12A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
1A	W10667169		Tech Sheet, (english)		Appelez-nous	-
1B	W11047681		Instructions, Installation		Appelez-nous	-
1C	W10400064		Guide, Quick Start (english)		Appelez-nous	-
2A	W10691697		Cooktop (white)   (Replaces: W10655914)				$ 590.94
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
NI	W11134550		Harness, Cooktop (right)   (Replaces: W10744210)				$ 228.90
NI	W11134596		Harness, Wire (cooktop Left)   (Replaces: W10349661)			Immediately	$ 229.76
NI	W11188459		Harness, Main   (Replaces: W10688248)		Appelez-nous	-
NI	W11212183		Harness, Sensor   (Replaces: W10349640)				$ 235.64
NI	W11134592		Harness, Warm Zone   (Replaces: W10174460)				$ 117.26
