01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts

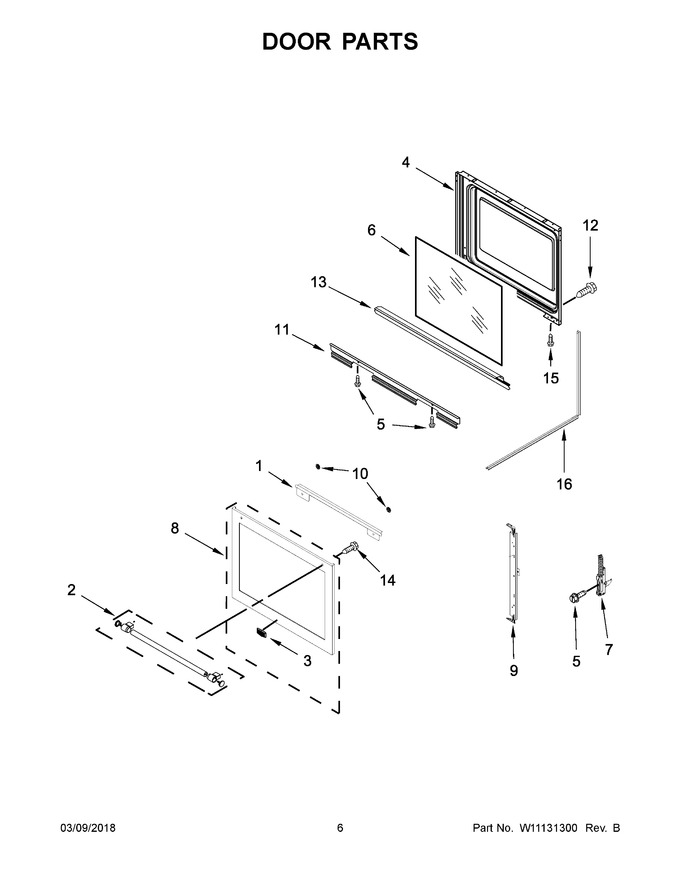

04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 39.92 | ||||
| 2 | W10912640 | Assembly, Handle (stainless) (Replaces: W10834521) |
|
$ 227.35 | |||||
| 3 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 335.04 | |||||
| 5 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W10813616) |
|
$ 171.17 | |||||
| 7 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 123.92 | ||||
| 8 | W11087941 | Glass Assembly, Outer Door (stainless) (Replaces: W10883552) |
|
$ 994.32 | |||||
| 8 | W11028197 | Assembly, Door Skin (stainless) (Replaces: W10861554) |
|
$ 399.60 | |||||
| 9 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 76.19 | ||||
| 10 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 10 | W11705267 | Glass, Outer (stainless) (Replaces: W10693388) |
|
$ 233.64 | |||||
| 11 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 177.21 | ||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 13 | W11251351 | Scoop, Door (black) (Replaces: W10613791) |
|
Immediately | $ 139.67 | ||||
| 14 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 15 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 16 | W11673273 | Spacer, Glass (Replaces: W10813142) |
|
Immediately | $ 31.04 |
