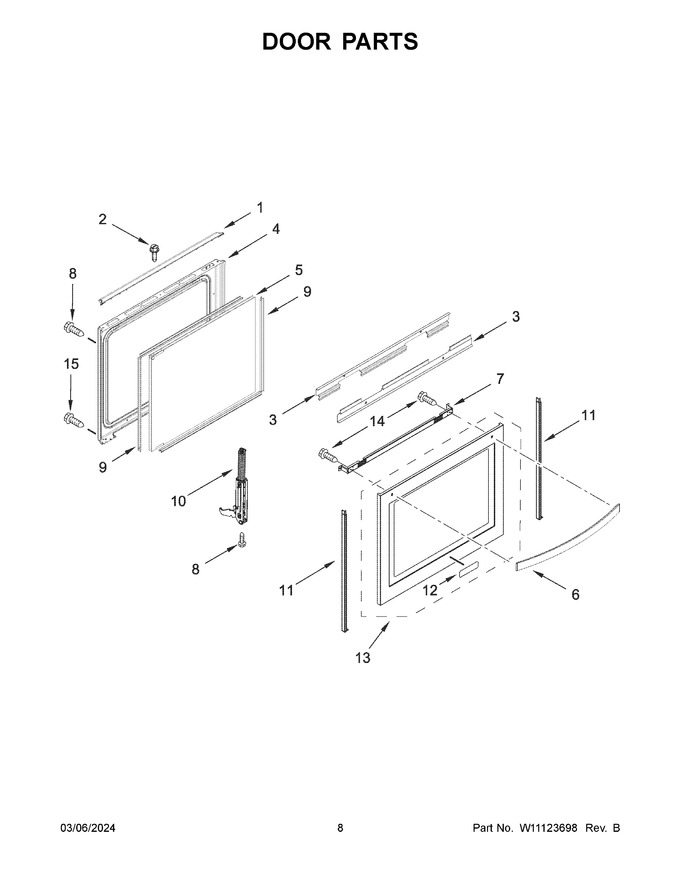

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11182113		Trim, Vent (black)   (Replaces: W10887939)				$ 135.70
2	WPW10132940		Screw   (Replaces: 3196184)				$ 10.12
3	W10813140		Rail, Horizontal Support			Immediately	$ 177.21
4	W10902192		Liner, Door   (Replaces: W10826568)				$ 335.04
5	W11339500		Glass, Inner   (Replaces: W11088591)				$ 171.17
6	W11107877		Handle, Door (stainless)   (Replaces: W10918786)			Immediately	$ 264.75
7	W10541911		Bracket, Glass Upper Handle			Immediately	$ 39.92
8	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
9	W11673273		Spacer, Glass   (Replaces: W10813142)			Immediately	$ 31.04
10	W11162113		Hinge, Door (active)   (Replaces: W10885519)			Immediately	$ 123.92
11	W11744483		Rail, Vertical Support   (Replaces: W10813139)			Immediately	$ 76.19
12	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
13	W11106273		Glass, Outer (stainless)   (Replaces: W10864214)				$ 517.73
14	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 8.78
15	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
13A	W11107401		Glass, Outer (black Stainless)   (Replaces: W10888239)				$ 612.73
6A	W11110500		Handle, Door (black Stainless)   (Replaces: W10918791)				$ 195.52
