SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

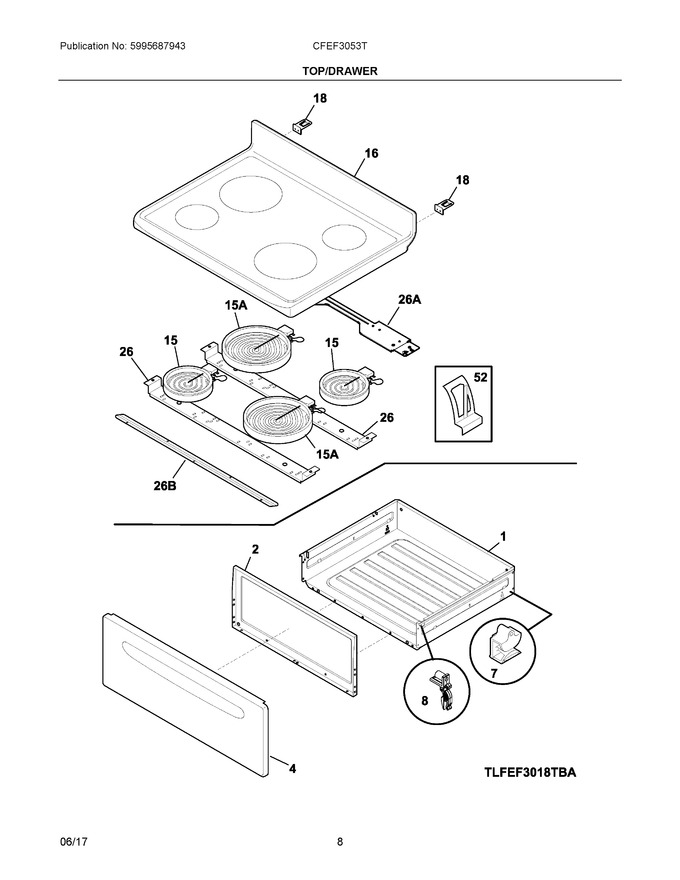

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408705)			Immediately	$ 122.90
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 32.03
4	5304511974		Panel, Drawer, Black, Front   (Replaces: 5304490932)				$ 102.63
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 10.95
8	5304490938		Glide, Drawer, Front			Immediately	$ 16.01
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 136.51
16	5304508976		Main Top, Assembly, Glass, Black				$ 274.73
18	316580800		Bracket-hinge, Main Top			Immediately	$ 10.95
26	5304500986		Channel, Element Support, (2)				$ 46.31
52	316461700		Clip, Element Mtg				$ 13.39
15A	316135401		Element, Surface, 9", 2500 W, Radiant			Immediately	$ 89.95
26A	316498200		Bracket-support, Chassis, Aluminum				$ 58.14
26B	316607600		Bracket, Chassis Support, Front				$ 58.14
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316580419		Harness, Wiring, Surface Units				$ 213.18
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.53
