SELECT A DIAGRAM

01 - Cover Sheet

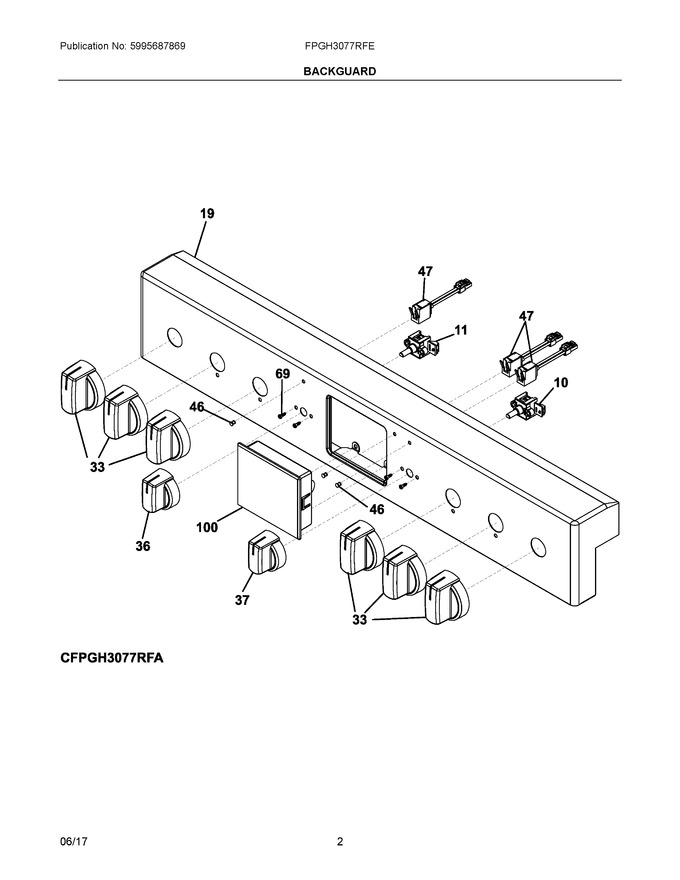

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	808843105		Potentiometer, Oven Temp				$ 155.61
11	5304493649		Potentiometer, Oven Mode			Immediately	$ 79.54
19	809103502		Panel, Control, Stainless				$ 326.72
33	809137801		Knob, Top Valve, Stainless				$ 164.31
36	809137901		Knob, Selector, Oven				$ 136.51
37	809137902		Knob, Temperature, Oven				$ 153.36
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
47	316022508		Light/lamp, Indicator, Blue, Oven				$ 30.33
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
100	808751519		Control Assembly, Complete, Hmi			Immediately	$ 303.42
NI	5304517680		Harness, Wiring, Backguard Cntl   (Replaces: 5304502431)			Immediately	$ 51.57
NI	5304510183		Harness, Wiring, Communication, Pcbs				$ 106.18
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NIA	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55

    View Diagram in Separate Window       Print Part List
