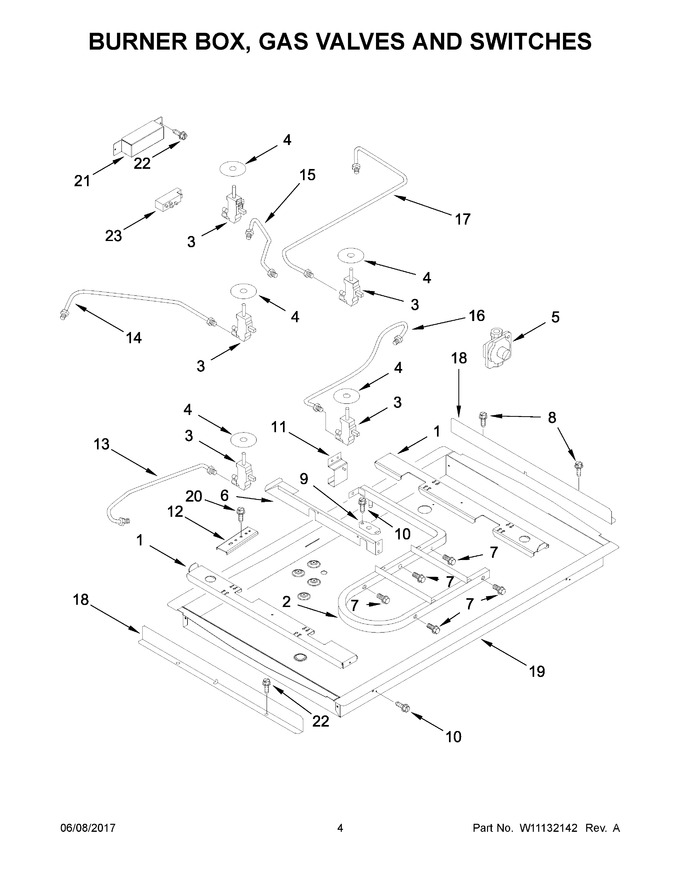

03 - Burner Box, Gas Valves And Switches


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8285796		Rail, Burner		Appelez-nous	-
2	8285751		Pipe, Manifold				$ 357.06
3	8286561		Valve, Gas Burner (left Front)				$ 323.75
4	WP3188425		Seal, Shaft   (Replaces: 3191387)				$ 96.38
5	W11170853		Regulator, Pressure   (Replaces: W10449142)				$ 330.26
6	W10203755		Rail, Center		Appelez-nous	-
7	12002277		Screw   (Replaces: 7101P640-60)				$ 318.24
8	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 8.76
9	8286858		Plate, Manifold		Appelez-nous	-
10	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
11	8285790		Bracket, Mounting Orifice				$ 85.85
12	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 92.86
13	W11134300		Tube (left Front)   (Replaces: W10721118)		Appelez-nous	-
14	8285769		Tube (left Rear)		Appelez-nous	-
15	8285770		Tube (center)				$ 179.58
16	8285768		Tube (right Front)				$ 195.80
17	8285767		Tube (right Rear)				$ 208.45
18	3191462		Shield, Heat		Appelez-nous	-
19	N/P		Box, Burner (not Serviced)		Appelez-nous	-
20	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
21	8285789		Shield, Heat   (Replaces: W10203754)				$ 179.71
22	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
23	WPW10110486		Module, Spark   (Replaces: W10110489)				$ 332.88
3A	8286559		Valve, Gas Burner (left Rear & Right Front)				$ 123.31
3B	WP4456817		Valve, Gas Burner (center Rear)   (Replaces: 4456817)				$ 334.11
3C	8286560		Valve, Gas Burner (right Rear)				$ 123.39
