01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts

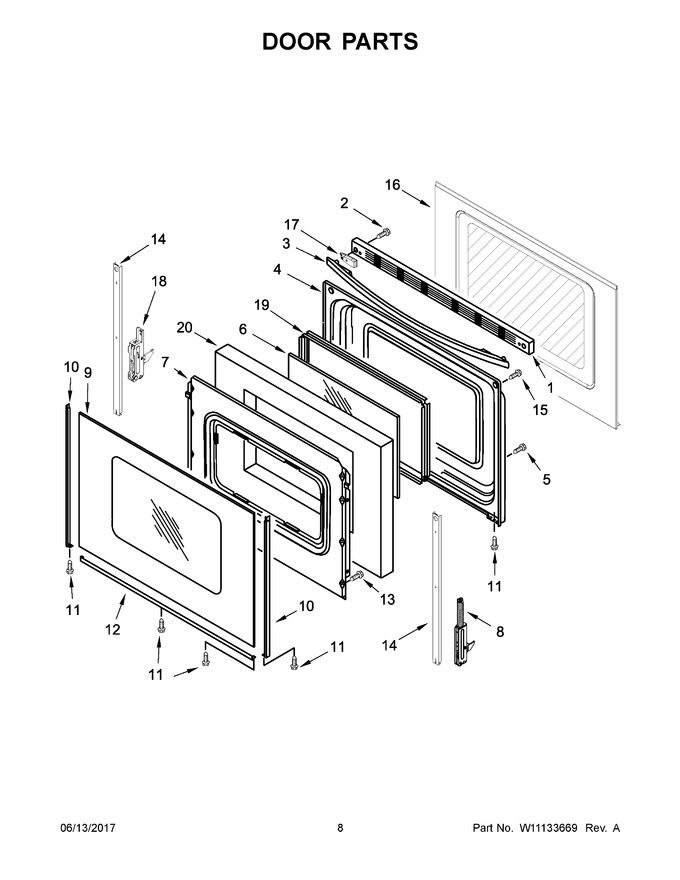

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 103.27 | ||||
| 2 | WPW10465148 | Screw (Replaces: W10465148) |
|
Immediately | $ 8.79 | ||||
| 3 | W10300489 | Handle, Door (white) |
|
Immediately | $ 244.88 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
$ 178.28 | |||||
| 7 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 233.31 | |||||
| 8 | WPW10299224 | Hinge, Active (with Spring) (Replaces: W10299224) |
|
Immediately | $ 73.47 | ||||
| 9 | WPW10409945 | Glass, Outer (white) (Replaces: W10409945) |
|
Immediately | $ 248.79 | ||||
| 10 | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 27.68 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 16 | W10330077 | Glass Assembly, Outer Door (stainless) |
|
$ 202.23 | |||||
| 17 | WPW10410341 | Standoff, Handle (black) (Replaces: W10410341) |
|
$ 80.75 | |||||
| 18 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 19 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 20 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 10A | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 10B | W10761018 | Trim, Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 10C | W10761014 | Trim, Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 72.96 | ||||
| 10D | WP8523173 | Trim, Side (biscuit (left)) (Replaces: 8523173) |
|
$ 123.53 | |||||
| 10E | WP8523167 | Trim, Side (biscuit (right)) (Replaces: 8523167) |
|
$ 119.10 | |||||
| 12A | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 12B | WP8523178 | Trim, Lower (biscuit) (Replaces: 8523178) |
|
$ 161.77 | |||||
| 12C | W10067550 | Trim, Lower (universal Silver) |
|
- | |||||
| 16A | W10330079 | Glass Assembly, Outer Door (universal Silver) |
|
- | |||||
| 1A | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 175.37 | ||||
| 1B | WPW10310923 | Trim, Top (biscuit) (Replaces: W10310923) |
|
$ 197.59 | |||||
| 3A | W10300490 | Handle, Door (black) |
|
Immediately | $ 156.75 | ||||
| 3B | W10300491 | Handle, Door (biscuit) |
|
- | |||||
| 3C | WPW10618239 | Handle, Door (stainless) (Replaces: W10618239) |
|
Immediately | $ 175.54 | ||||
| 9A | WPW10409946 | Glass, Outer (black) (Replaces: W10409946) |
|
$ 319.25 | |||||
| 9B | WPW10409947 | Glass, Outer (biscuit) (Replaces: W10409947) |
|
$ 320.94 |
