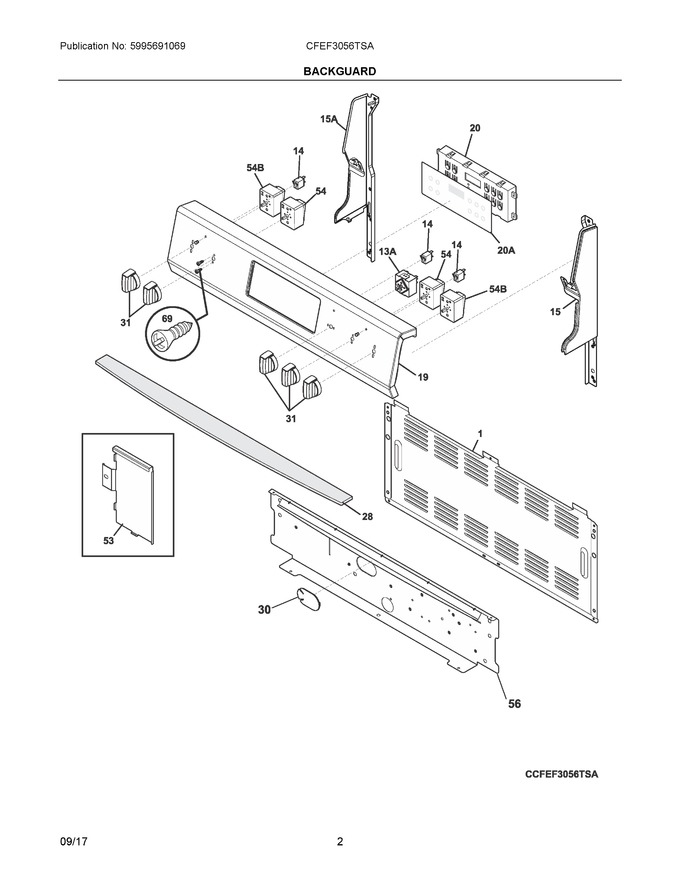

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281800)				$ 64.04
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 59.52
15	5304493644		Cap, End, Black, Rh				$ 74.15
19	5304508961		Panel Control				$ 272.84
20	5304509051		Clock, Es330isb				$ 289.86
28	316528700		Insulation, Manifold Panel				$ 99.23
30	316577600		Plug, Button, Oval, Harness				$ 16.54
31	5304509063		Knob, Stainless				$ 66.68
53	316355000		Shield, Flue, Inner		Appelez-nous	-
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
56	316234045		Shield, Backguard, Black, Inner   (Replaces: 316234013)				$ 74.15
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
13A	5304508926		Switch, Infinite, Warmer			Immediately	$ 93.53
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 74.15
20A	316419377		Overlay, Clock, Black, Es330				$ 40.23
54B	316238201		Switch, Infinite Radian, Dual			Immediately	$ 98.89
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
