View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Main Top
06 - Doors
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

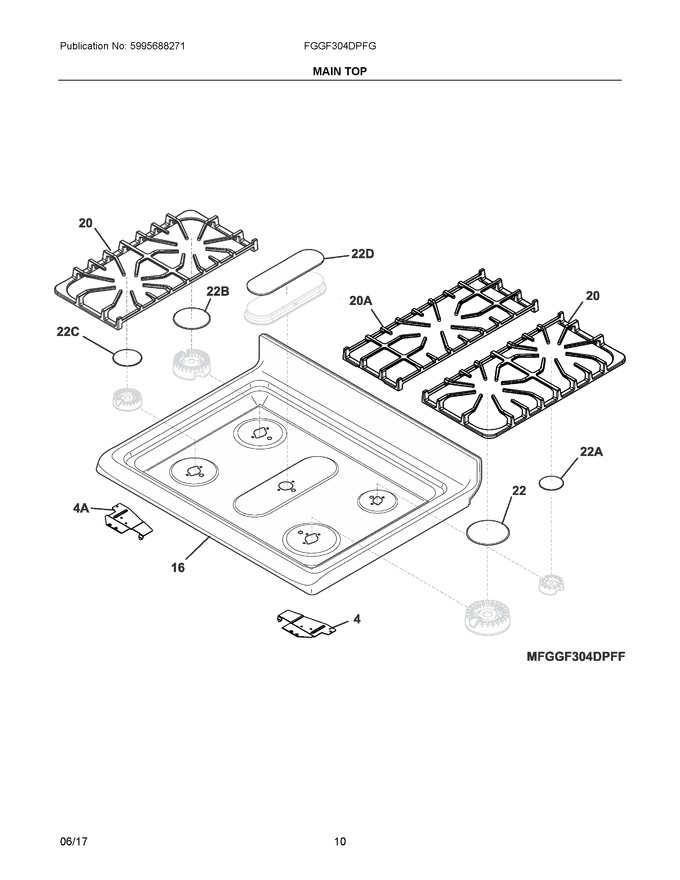

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 316605404 | Bracket, Maintop, Rh, Lockdown |
|
- | |||||
| 16 | 316610014 | Main Top, Black |
|
Immediately | $ 281.14 | ||||
| 20 | 807327101 | Grate, Burner, Black, Side, (2) |
|
$ 270.90 | |||||
| 22 | 5304508468 | Cap, 17k Burner, Black (Replaces: 316262104) |
|
$ 54.94 | |||||
| 20A | 807412601 | Grate, Burner, Black, Center |
|
$ 266.96 | |||||
| 22A | 5304508441 | Cap, 5k Burner, Matte, Black (Replaces: 316261704) |
|
Immediately | $ 38.93 | ||||
| 22B | 5304508443 | Cap, 14k Burner, Matte, Black (Replaces: 316262004) |
|
Immediately | $ 51.12 | ||||
| 22C | 5304508442 | Cap, 9.5k Burner, Matte, Black (Replaces: 316261804) |
|
Immediately | $ 40.61 | ||||
| 22D | 316559604 | Cap, 9.5k Burner, Black, Oval |
|
$ 80.33 | |||||
| 4A | 316605405 | Bracket, Maintop, Lh, Lockdown |
|
- | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 30.55 |
