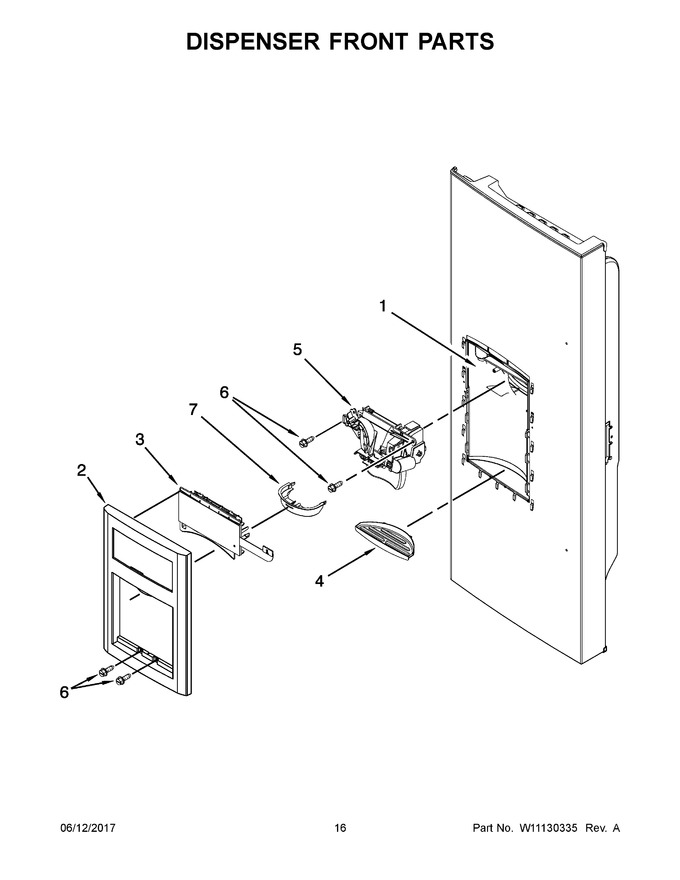

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10314407 | Facade, Dispenser (stainless) |
|
$ 96.50 | |||||
| 3 | W10708780 | Assembly, Control (black) |
|
$ 335.94 | |||||
| 4 | 13050701B | Sump, Dispenser (black) |
|
- | |||||
| 5 | WP13005702B | Chute, Ext/yoke (includes Switch) (black) (Replaces: 13005702B) |
|
$ 330.28 | |||||
| 6 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 7 | 67006295 | Ring, Target (Replaces: 12958301) |
|
$ 55.57 |
