01 - Cover Sheet
02 - Cooktop Parts

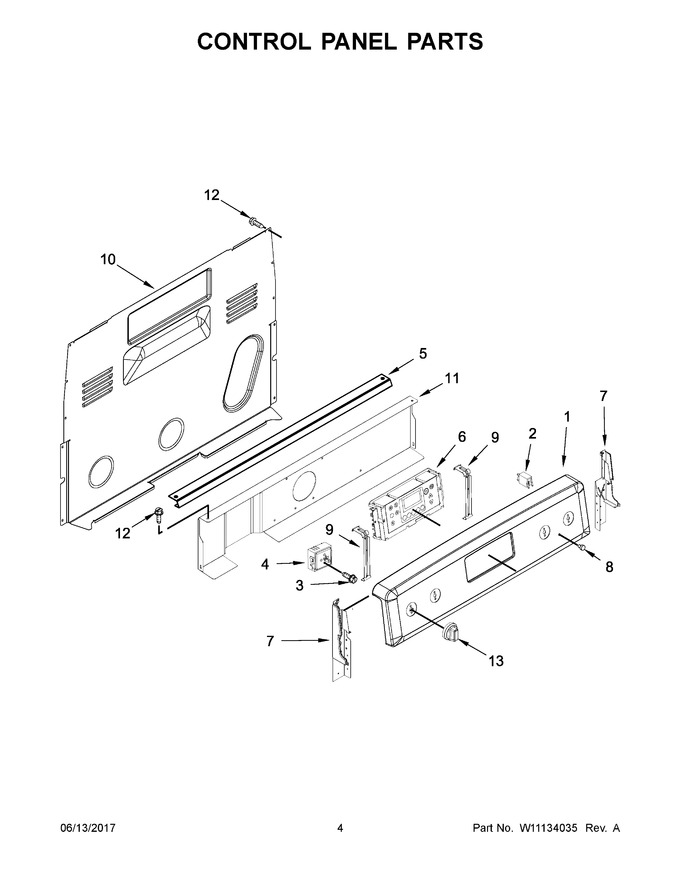

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11189174 | Console (stainless) (Replaces: W10655836) |
|
$ 342.65 | |||||
| 2 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 6 | W11039099 | Board, Control (stainless) (Replaces: W10888768) |
|
$ 565.23 | |||||
| 7 | W11219664 | Endpost, Console (black (left)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 13 | W11084052 | Knob (stainless) (Replaces: W10858252) |
|
Immediately | $ 83.54 | ||||
| 4A | W10911303 | Switch, Infinite (left Rear & Right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 4B | W10917724 | Switch, Infinite (right Front) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 7A | W11219665 | Endpost, Console (black (right)) (Replaces: W10184438) |
|
$ 45.17 |
