01 - Cover Sheet

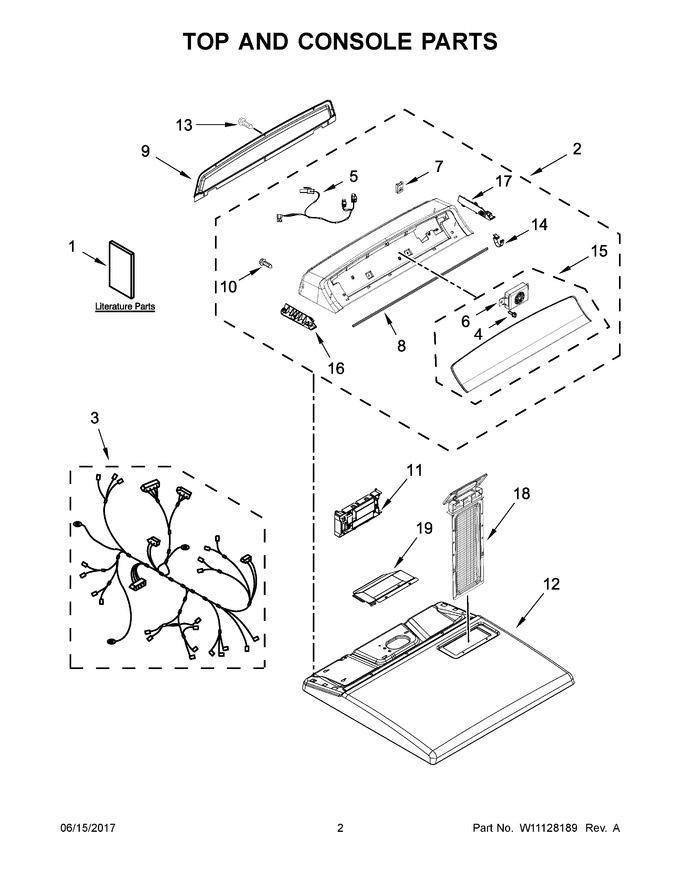

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10807515		Installation Instructions		Appelez-nous	-
2	W11050696		Console Assembly (complete) (white)   (Replaces: W10622070)				$ 172.20
3	W10865053		Harness, Main		Appelez-nous	-
4	W11631670		Screw   (Replaces: 8281217)				$ 14.72
5	W10634454		Harness, User Interface		Appelez-nous	-
6	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10775189		Panel, Rear				$ 390.13
10	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
11	W11126815		Control, Electronic   (Replaces: W10853088)		Appelez-nous	-
12	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 196.23
13	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	W10870771		Fascia		Appelez-nous	-
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 153.63
18	W11778254		Lint Screen (white)   (Replaces: W10508973)			Immediately	$ 54.63
19	W10662472		Collar, Lint Chute				$ 77.87
1A	W10807505		Use And Care Guide		Appelez-nous	-
1B	W10809798		Quickstart Guide		Appelez-nous	-
1C	W10865055		Tech Sheet		Appelez-nous	-
1D	W10864658		Wiring Diagram		Appelez-nous	-
