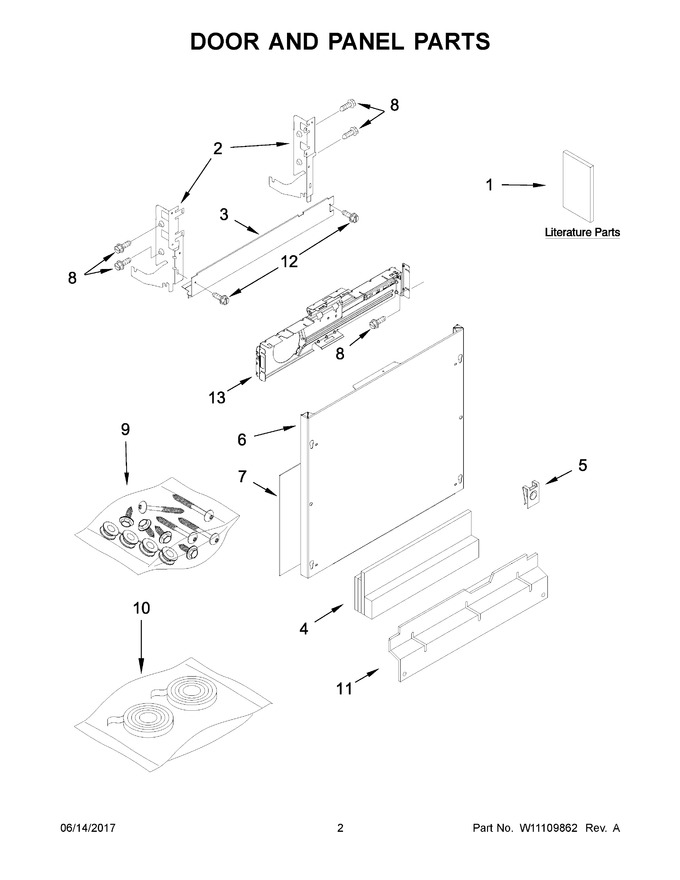

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10806906 | Installation Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Barrier, Vapor (Replaces: W10844384) |
|
Immediately | $ 32.88 | ||||
| 4 | W11223838 | Insulation, Four Layer (Replaces: W10735304) |
|
Immediately | $ 43.91 | ||||
| 5 | W10910629 | U-nut (Replaces: W10853886) |
|
$ 8.64 | |||||
| 6 | W11113792 | Panel Front (ready) (Replaces: W10738109) |
|
Immediately | $ 373.42 | ||||
| 7 | W10234565 | Insulation, Front Panel |
|
$ 69.57 | |||||
| 8 | WP3400071 | Screw (Replaces: 3400071) |
|
Immediately | $ 8.26 | ||||
| 9 | WPW10637074 | Hardware, Custom Panel (Replaces: W10195008) |
|
Immediately | $ 78.87 | ||||
| 10 | WPW10366978 | Seal, Panel Ready (Replaces: W10366978) |
|
Immediately | $ 29.80 | ||||
| 11 | W11763736 | Access Panel (black) (Replaces: W10852733) |
|
Immediately | $ 42.25 | ||||
| 12 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 13 | W11116870 | Bracket, Control (Replaces: W10641745) |
|
$ 89.95 | |||||
| 1A | W10921032 | Energy Guide |
|
- | |||||
| 1B | W10762967 | Use & Care Guide |
|
- | |||||
| 1C | W10920270 | Tech Sheet |
|
- | |||||
| 1D | W10195005 | Template, 6" Custom Panel |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 |
