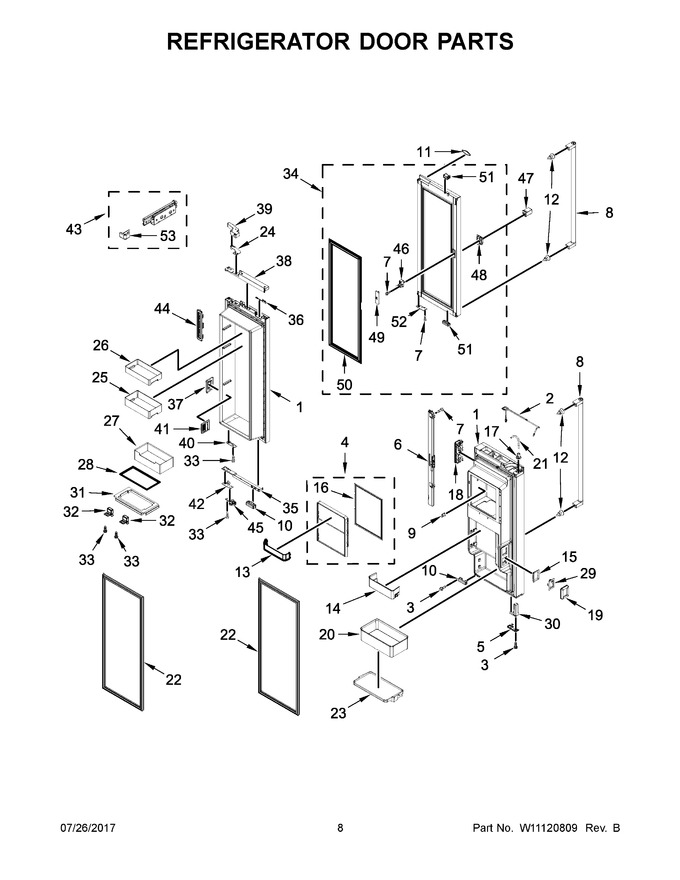

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10895420 | Door, Refrigerator Left Hand (stainless) |
|
- | |||||
| 2 | W11366500 | Assembly, Fill Tube (icemaker) (Replaces: W10917894) |
|
Immediately | $ 120.12 | ||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W11594927 | Assembly, Ice Door (Replaces: W10798124) |
|
$ 177.40 | |||||
| 5 | W11243377 | Bracket, Door Stop (Replaces: W10763415) |
|
Immediately | $ 76.11 | ||||
| 6 | W11649966 | Mullion, Door (grey) (Replaces: W11034034) |
|
$ 141.79 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11483532 | Handle, Door (stainless) (Replaces: W10704121) |
|
Immediately | $ 178.01 | ||||
| 9 | W11123943 | Switch, Rocker Arm (Replaces: W10656772) |
|
$ 36.66 | |||||
| 10 | W10798308 | Bumper, Door (grey) |
|
$ 26.97 | |||||
| 11 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | W10887799 | Trivet, Ice Compartment Door (Replaces: W10795606) |
|
Immediately | $ 106.65 | ||||
| 14 | W10887800 | Bin, Door (medium) (Replaces: W10806697) |
|
Immediately | $ 86.81 | ||||
| 15 | W10834282 | Retainer, Door Duct |
|
$ 27.78 | |||||
| 16 | W11625086 | Gasket, Ice Door (Replaces: W10853441) |
|
$ 79.87 | |||||
| 17 | W10839046 | Clip, Tube |
|
- | |||||
| 18 | W11330651 | Assembly, User Interface (Replaces: W11124679) |
|
- | |||||
| 19 | W11227369 | Gasket, Cooling Duct (Replaces: W10828418) |
|
$ 26.78 | |||||
| 20 | W10887801 | Bin, Door (gallon) (Replaces: W10776705) |
|
$ 124.45 | |||||
| 21 | W10883965 | Tube, Water |
|
$ 129.52 | |||||
| 22 | W10917313 | Gasket, Door Left Hand (grey) |
|
Immediately | $ 327.90 | ||||
| 23 | W11733335 | Trim, Gallon (Replaces: W10823512) |
|
$ 315.65 | |||||
| 24 | W10896964 | Hinge, Top (grey) |
|
- | |||||
| 25 | W11123517 | Bin, Door In Door Large |
|
- | |||||
| 26 | W11123512 | Bin, Door In Door Small |
|
- | |||||
| 27 | W11123521 | Bin, Pullout |
|
- | |||||
| 28 | W10895965 | Inlay, Bin |
|
- | |||||
| 29 | W10799328 | Duct, Cooling |
|
$ 105.91 | |||||
| 30 | W11179355 | Closer, Door (left Hand) (Replaces: W10872968) |
|
$ 26.06 | |||||
| 31 | W10895964 | Slide, Bin Trim |
|
- | |||||
| 32 | W10903876 | Clip, Pullout Bin Snap |
|
- | |||||
| 33 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 34 | W11044899 | Assembly, Outer Door (stainless) |
|
- | |||||
| 35 | W10871588 | Cap, Inner Door Bottom (grey) |
|
- | |||||
| 36 | W10912979 | Switch, Reed |
|
- | |||||
| 37 | W10866588 | Assembly, Gasket Air |
|
- | |||||
| 38 | W10870592 | Cap, Inner Door Top (grey) |
|
- | |||||
| 39 | W10889824 | Assembly, Outer Hinge Cover (grey) |
|
- | |||||
| 40 | W10864838 | Bracket, Door Stop |
|
- | |||||
| 41 | W10895522 | Assembly, Air Shutter |
|
- | |||||
| 42 | W10897037 | Hinge, Bottom (grey) |
|
- | |||||
| 43 | W10895977 | Glide, Pullout Bin (left Hand) |
|
- | |||||
| 44 | W11042192 | Assembly, Led |
|
- | |||||
| 45 | W10905299 | Latch, Door Closer (right Hand) (grey) |
|
- | |||||
| 46 | W11118122 | Assembly, Latch |
|
- | |||||
| 47 | W11104445 | Trigger (includes Set Screw) |
|
- | |||||
| 48 | W10874461 | Bezel, Trigger |
|
- | |||||
| 49 | W11082635 | Cover, Outer Latch Housing (grey) |
|
- | |||||
| 50 | W10871858 | Gasket, Outer Door (grey) |
|
- | |||||
| 51 | W10902310 | Assembly, Bumper Outer Door (grey) |
|
- | |||||
| 52 | W10863826 | Bracket, Outer Door Stop |
|
- | |||||
| 53 | W10896038 | Trim, Endcap (left Hand) |
|
- | |||||
| 1A | W11044902 | Door, Refrigerator Right Hand (stainless) |
|
- | |||||
| 22A | W11043531 | Gasket, Door (right Hand) (grey) |
|
- | |||||
| 43A | W10895976 | Glide, Pullout Bin (right Hand) |
|
- | |||||
| 53A | W10896039 | Trim, Endcap (right Hand) |
|
- |
