SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Door Parts


05 - Bulkhead Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)

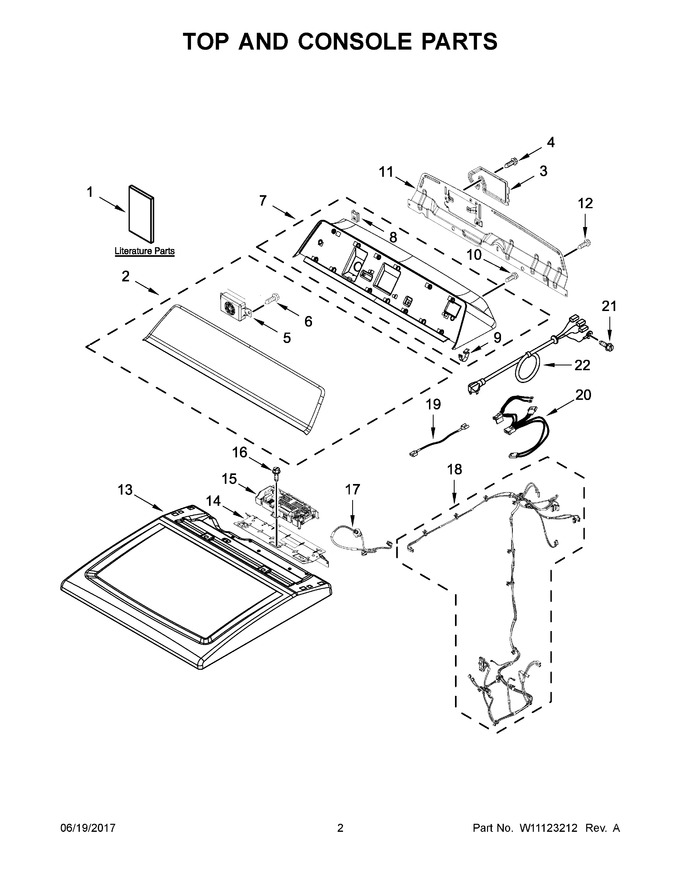

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10904260		Installation Instructions		Appelez-nous	-
2	W11040876		Assembly, Fascia (white)		Appelez-nous	-
3	W10896066		Cover, Power Cord		Appelez-nous	-
4	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
5	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
6	W11631670		Screw   (Replaces: 8281217)				$ 14.72
7	W11124264		Console (white)   (Replaces: W11035035)				$ 377.97
8	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
9	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
10	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
11	W11089307		Panel, Rear Console   (Replaces: W10896065)				$ 199.90
12	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
13	W11641121		Top (white)   (Replaces: W10260246)			Immediately	$ 215.10
14	W11431865		Bracket, Electronic Control   (Replaces: W10896068)				$ 57.36
15	W11124284		Control, Electronic   (Replaces: W11106066)			Immediately	$ 530.67
16	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
17	W10906300		Cable, User Interface				$ 170.43
18	W10907916		Wiring Harness		Appelez-nous	-
19	W10525140		Jumper, Tco High Limit		Appelez-nous	-
20	W10305870		Harness, Gas		Appelez-nous	-
21	W10850756		Screw   (Replaces: W10773242)				$ 8.20
22	W11222083		Cord, Power   (Replaces: W10869141)				$ 126.62
1A	W11040073		Guide, Use And Care		Appelez-nous	-
1B	W10913969		Tech Sheet		Appelez-nous	-
1C	W11040076		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
