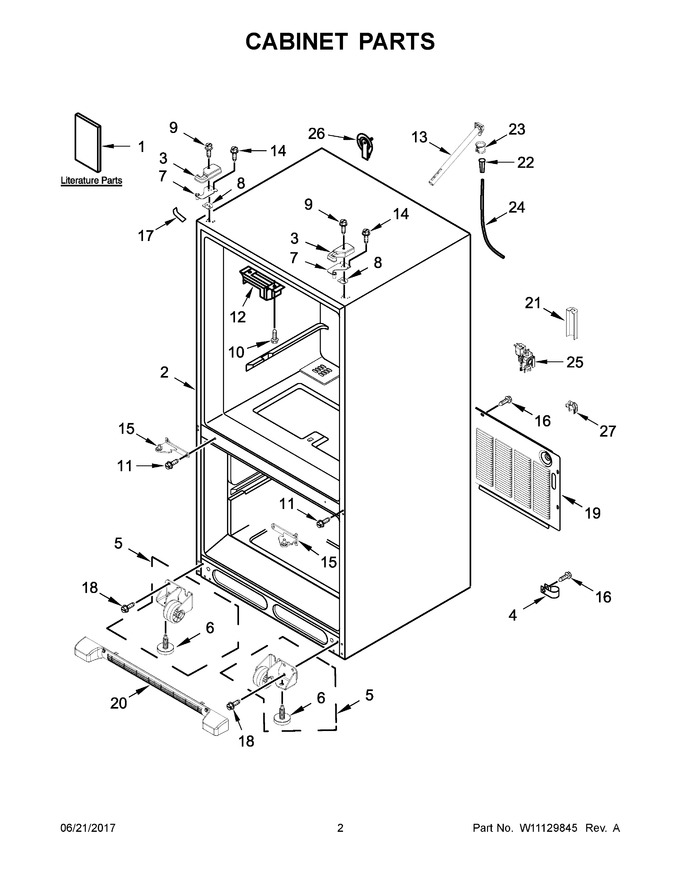

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10597594		Use And Care Guide		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
3	WPW10337634		Cover, Hinge Left Hand (includes Foil) (white)   (Replaces: W10337634)			Immediately	$ 23.54
4	W11456069		Clamp, Tube   (Replaces: M0108107)			Immediately	$ 22.40
5	W11820444		Assembly, Roller (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
6	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
7	W11592375		Hinge, Top (left Hand)   (Replaces: 12963204ED)				$ 31.92
8	12999501		Shim, Top Hinge (left Hand)				$ 99.53
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	W10854958		Screw   (Replaces: 12990302)				$ 7.90
11	WP489349		Screw   (Replaces: 12990101)			Immediately	$ 8.43
12	WP67003405		Plate, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
13	W11176463		Elbow, Fill Tube   (Replaces: 10463203)			Immediately	$ 119.86
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 8.43
15	W10918115		Hinge, Center Left Hand (white)   (Replaces: W10740148)				$ 22.89
16	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
17	12587703W		Cover, Corner (white)				$ 22.90
18	67006564		Screw   (Replaces: W10709365)			Immediately	$ 8.15
19	WPW10210979		Cover, Unit   (Replaces: W10210979)				$ 206.23
20	WPW10534161		Grille, Toe (white)   (Replaces: W10534161)				$ 147.09
21	W10208592		Cover, Valve		Appelez-nous	-
22	WPA3223101		Insert, Tube   (Replaces: A3223101)			Immediately	$ 8.21
23	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
24	W11120581		Tubing, Plastic   (Replaces: W11031913)				$ 124.93
25	WPW10498976		Valve, Inlet   (Replaces: W10498976)			Immediately	$ 126.10
26	12726003		Cover, Water Line				$ 19.19
27	W10485986		Guide, Waterline			Immediately	$ 12.95
15A	W10918166		Hinge, Center Left Hand (black)   (Replaces: W10740149)				$ 78.31
15B	W11747628		Hinge, Center Left Hand (grey)   (Replaces: W10740150)			Immediately	$ 64.18
15C	W10918117		Hinge, Center Right Hand (white)   (Replaces: W10740144)				$ 23.79
15D	W10918168		Hinge, Center Right Hand (black)   (Replaces: W10740145)			Immediately	$ 78.07
15E	W11747628		Hinge, Center Right Hand (grey)   (Replaces: W10740146)			Immediately	$ 64.18
17A	67003485		Cover, Corner (black)   (Replaces: 12587703B)			Immediately	$ 22.14
17B	WP12587703AP		Cover, Corner (grey)   (Replaces: 12587703AP)				$ 8.07
1A	W11112928		Energy Guide		Appelez-nous	-
1B	W10787418		Tech Sheet (english)		Appelez-nous	-
1C	W10787417		Tech Sheet (french)		Appelez-nous	-
20A	WPW10534162		Grille, Toe (black)   (Replaces: W10534162)				$ 148.16
20B	WPW10534160		Grille, Toe (grey)   (Replaces: W10534160)			Immediately	$ 72.60
3A	W10337647		Cover, Hinge Left Hand (includes Foil) (black)			Immediately	$ 23.33
3B	WPW10337648		Cover, Hinge Left Hand (includes Foil) (grey)   (Replaces: W10337648)				$ 23.12
3C	67005958		Cover, Hinge Right Hand (includes Foil) (white)   (Replaces: 12962302W)				$ 21.57
3D	WP67005956		Cover, Hinge Right Hand (includes Foil) (black)   (Replaces: 12962302B)				$ 22.54
3E	WPW10191117		Cover, Hinge Right Hand (includes Foil) (grey)   (Replaces: 12962302AP)				$ 23.05
5A	W11820445		Assembly, Roller (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
7A	W11592374		Hinge, Top (right Hand)   (Replaces: 12963205ED)			Immediately	$ 31.90
8A	12999502		Shim, Top Hinge (right Hand)				$ 100.60
