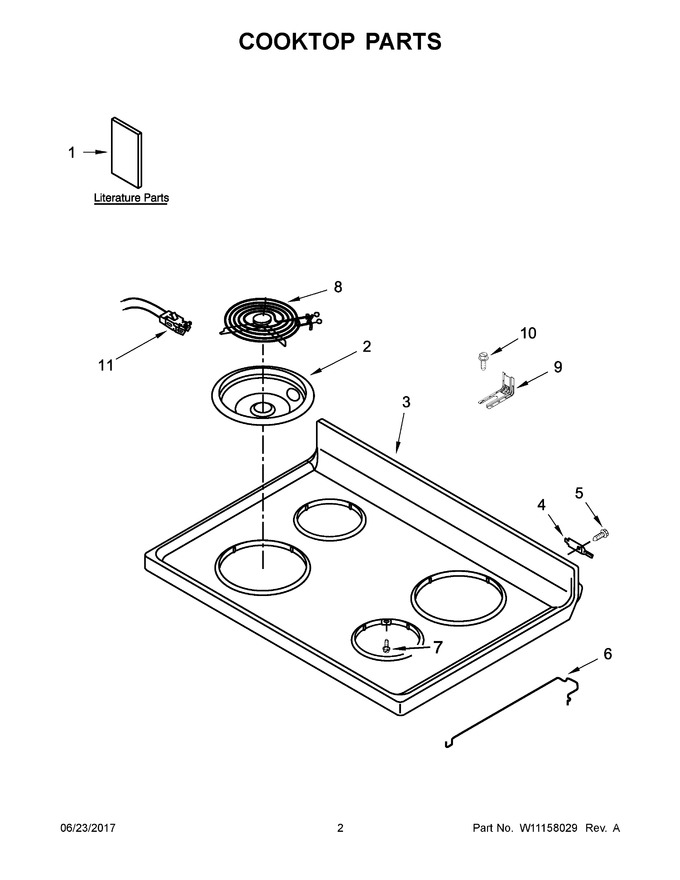

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403812		Instructions, Installation		Appelez-nous	-
2	WPW10196406		Bowl, Drip (6") (right Rear And Left Rear)   (Replaces: W10196406)			Immediately	$ 13.39
3	8195532		Cooktop (white)   (Replaces: 3186231)				$ 419.31
4	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	WP3195812		Rod, Support   (Replaces: 3195812)			Immediately	$ 8.73
7	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
8	WPW10259868		Element (6") (right Front And Left Rear)   (Replaces: W10259868)			Immediately	$ 173.17
9	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
10	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
11	814399		Receptacle, Element			Immediately	$ 43.19
1A	W10719735		Use And Care Guide		Appelez-nous	-
1B	W10361708		Sheet, Tech (english)		Appelez-nous	-
1C	W10361709		Sheet, Tech (french)		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	WPW10196405		Bowl, Drip (8") (left Front & Right Front)   (Replaces: W10196405)			Immediately	$ 17.29
3A	8195534		Cooktop (black)   (Replaces: 3186233)				$ 509.93
8A	WPW10259865		Element (8") (left Front And Right Rear)   (Replaces: W10259865)			Immediately	$ 144.20
NI	W11172524		Harness, Sensor   (Replaces: W10084660)				$ 217.19
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11226235		Harness, Assembly Lcc   (Replaces: W10251768)				$ 198.93
NI	WPW10295595		Harness, Cooktop   (Replaces: W10295595)			Immediately	$ 156.06
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87

    View Diagram in Separate Window       Print Part List
