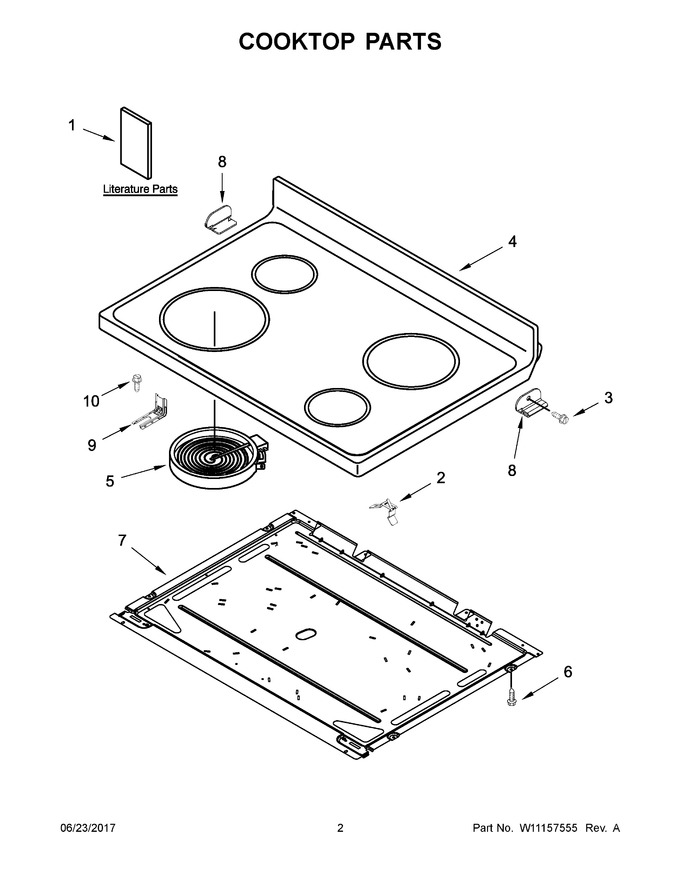

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10472025 | Cooktop (white) (Replaces: W10380658) |
|
$ 593.19 | |||||
| 5 | W10895828 | Element (3000w) (left Front) (Replaces: W10248263) |
|
$ 319.11 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 8 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 1A | W10384447 | Tech Sheet (english) |
|
- | |||||
| 1B | W10384462 | Tech Sheet (french) |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10719736 | Use And Care Guide |
|
- | |||||
| 4A | W10472027 | Cooktop (black) (Replaces: W10380659) |
|
$ 590.67 | |||||
| 5A | W11171119 | Element (1200w) (right Front And Left Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 5B | WP8273993 | Element (1800w) (right Rear) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 8A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11825098 | Harness, Hidden Bake (Replaces: W10465644) |
|
$ 86.33 | |||||
| NI | W11172424 | Harness, Sensor (Replaces: W10083650) |
|
$ 113.78 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10349660 | Harness, Wire (main) |
|
$ 193.61 | |||||
| NI | W10844299 | Harness, Wire (cooktop Right) |
|
- | |||||
| NI | W10844300 | Harness, Wire (cooktop Left) |
|
- |
