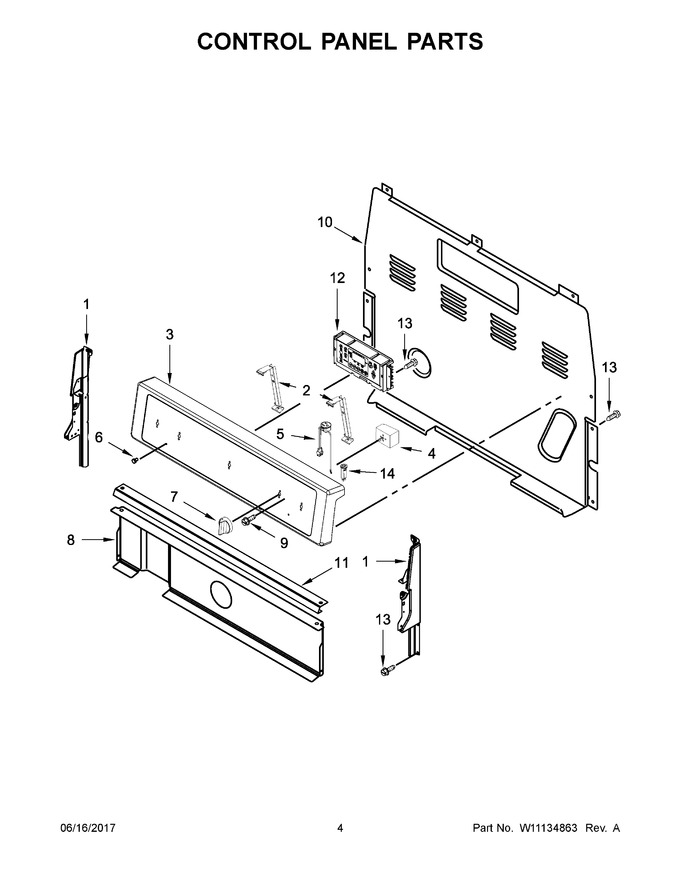

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 2 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 3 | W11251229 | Console (stainless) (Replaces: W10714880) |
|
Immediately | $ 482.64 | ||||
| 4 | WPW10434452 | Switch, Infinite (dual) (left Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | W10861164 | Receptacle (black) (Replaces: W10749729) |
|
Immediately | $ 18.47 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | W10836470 | Knob (black) (Replaces: W10676213) |
|
Immediately | $ 38.09 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | W10887904 | Control, Range (stainless) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 4A | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4B | WP3149400 | Switch, Infinite (right Front) (Replaces: 3148954) |
|
Immediately | $ 90.51 |
