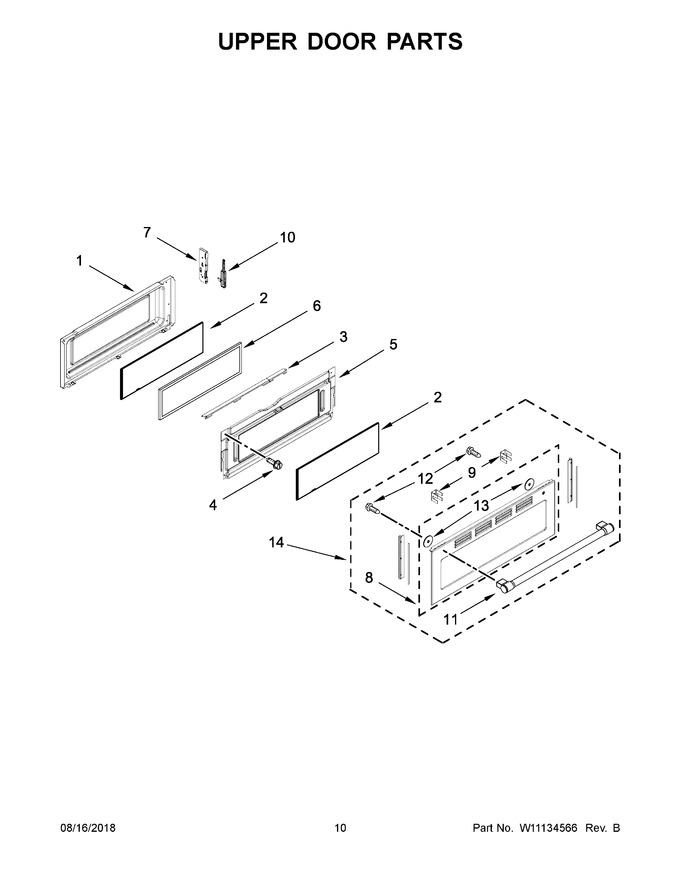

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11051040		Lining, Door				$ 301.00
2	W11132120		Glass, Inner   (Replaces: W11099272)				$ 179.33
3	WPW10272708		Frame, Glass   (Replaces: W10272708)				$ 171.93
4	WPW10292297		Screw   (Replaces: W10292297)			Immediately	$ 7.55
5	W10485723		Retainer, Insulation				$ 252.42
6	WPW10321271		Insulation, Door   (Replaces: W10321271)				$ 99.18
7	W10647259		Receiver, Hinge   (Replaces: W10289077)			Immediately	$ 9.32
8	W11132193		Panel, Outer Door (stainless)   (Replaces: W10888651)			Immediately	$ 566.45
9	W10575917		Spacer, Vent Trim				$ 13.27
10	WPW10485733		Hinge, Door (left)   (Replaces: W10485733)			Immediately	$ 59.59
11	W11132203		Assembly, Door Handle (stainless)   (Replaces: W10904974)				$ 210.99
12	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
13	7109P084-60		Washer, Fiber		Appelez-nous	-
14	W11160356		Assembly, Outer Door (stainless)   (Replaces: W10888652)				$ 996.92
10A	WPW10485732		Hinge, Door (right)   (Replaces: W10485732)			Immediately	$ 55.76

    View Diagram in Separate Window       Print Part List
