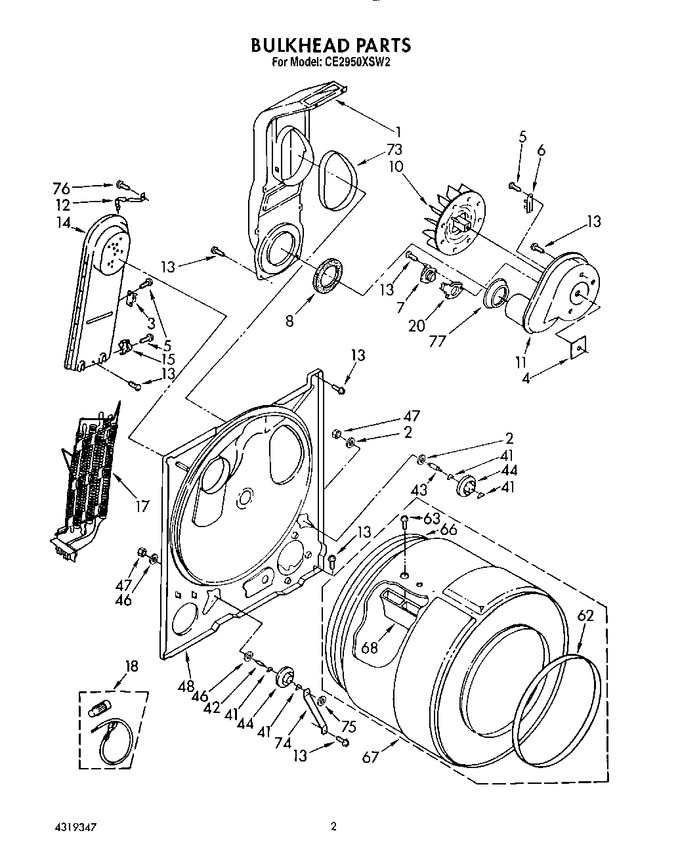

02 - Bulkhead, Lit/optional
03 - Top And Console
04 - Cabinet
05 - Wiring Harness
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279505 | Lint Chute Assembly (Replaces: 4319320) |
|
$ 317.74 | |||||
| 2 | 339492 | Washer, Support |
|
- | |||||
| 3 | 279769 | Thermal Cutoff (Replaces: 3389946) |
|
Immediately | $ 62.85 | ||||
| 4 | 3392123 | Seal, Blower |
|
- | |||||
| 5 | WP90767 | Screw, 8a X 3/8 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 6 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 7 | WP694674 | Thermostat, Operating 150~f (66~c) (alt.) (Replaces: 341146) |
|
Immediately | $ 84.03 | ||||
| 7 | AT022 | Thermostat, Operating 150~f (65.6~c) (Replaces: 660039) |
|
Immediately | $ 35.17 | ||||
| 8 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 19.14 | ||||
| 10 | WP694089 | Wheel, Blower (includes Illus. No. 4) (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | 4319317 | Housing, Blower |
|
- | |||||
| 12 | 279771 | Clip (Replaces: 4319315) |
|
$ 15.05 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 14 | 685457 | Box, Heater |
|
- | |||||
| 15 | WP3390291 | Thermostat, High Limit 250~f (121.1~c) (60 Hz.) (Replaces: 3390291) |
|
Immediately | $ 94.94 | ||||
| 17 | WP279462 | Heater Element (Replaces: 693301) |
|
$ 304.87 | |||||
| 18 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 20 | 61894 | Heater, Thermostat |
|
$ 37.38 | |||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 4319305) |
|
Immediately | $ 9.68 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 4319306) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 4319304) |
|
Immediately | $ 56.77 | ||||
| 44 | 349241T | Roller, Support (2) (Replaces: 349241) |
|
Immediately | $ 29.53 | ||||
| 46 | 4319307 | Washer, Support (2) |
|
- | |||||
| 47 | 120377 | Nut, 3/8-16 (2) |
|
- | |||||
| 48 | 4319303 | Bulkhead |
|
- | |||||
| 62 | WP3394508 | Bearing, Ring (Replaces: 297936) |
|
$ 131.86 | |||||
| 63 | 4319324 | Screw, 11-16 X 7/8 |
|
- | |||||
| 66 | 239087 | Seal, Rear Drum (Replaces: 4319323) |
|
Immediately | $ 63.62 | ||||
| 67 | 3396775 | Drum Assembly (Replaces: 4319322) |
|
$ 353.03 | |||||
| 68 | WP342847 | Baffle, Drum (Replaces: 342847) |
|
$ 154.33 | |||||
| 73 | WP339956 | Seal, Lint Chute (Replaces: 4319308) |
|
Immediately | $ 9.06 | ||||
| 74 | 4319310 | Bracket, Support Shaft |
|
- | |||||
| 75 | WP90296 | Clip (Replaces: 90296) |
|
$ 8.24 | |||||
| 76 | WP489069 | Screw, 8-18 X 1/2 (Replaces: 4319316) |
|
Immediately | $ 8.40 | ||||
| 77 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 23.40 | |||||
| LIT348772 | Instructions, Multi-venting |
|
- | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | ||||||
| LIT4319347 | List, Service Parts |
|
- | ||||||
| LIT692257 | Sheet, Top Lock Instruction |
|
- | ||||||
| LIT3391884 | Instructions, Installation |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350941 | Leveler (thinner) |
|
- | ||||||
| 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | ||||||
| 261890 | Golden Harvest |
|
- | ||||||
| 261888 | New Avocado |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 261891 | Golden Harvest (uncut) |
|
- | ||||||
| 261889 | New Avocado (uncut) |
|
- | ||||||
| 978883 | Almond (uncut) |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 137.86 | ||||||
| DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 60.28 |
