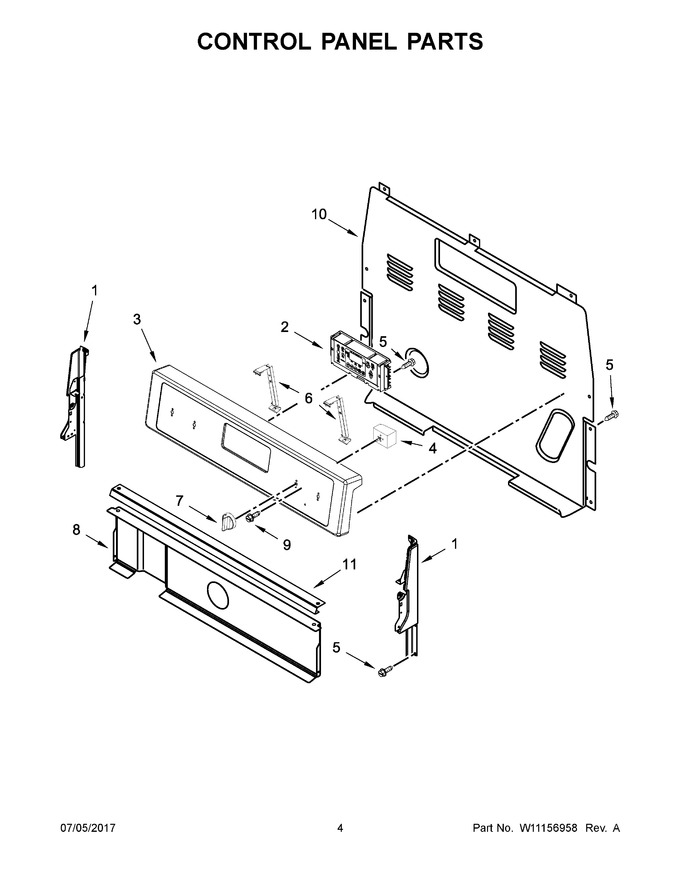

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W10184437)				$ 153.83
2	W11594188		Electronic, Control (lcx) (black)   (Replaces: W11038143)		Appelez-nous	-
3	W11158183		Console, Assembly   (Replaces: W11027378)		Appelez-nous	-
4	WPW10434452		Switch, Infinite (dual) (left Front, Right Front)   (Replaces: W10434452)			Immediately	$ 140.84
5	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
6	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
7	W11158169		Knob (black)   (Replaces: W11022718)			Immediately	$ 80.02
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
1A	W11219665		Endcap (black (right))   (Replaces: W10184438)				$ 45.17
1B	W11219365		Endcap (white (left))   (Replaces: W10184433)				$ 42.45
1C	W11219370		Endcap (white (right))   (Replaces: W10184434)				$ 60.83
1D	W11230611		Endcap (biscuit (left))   (Replaces: W10184435)		Appelez-nous	-
1E	W11230612		Endcap (biscuit (right))   (Replaces: W10184436)		Appelez-nous	-
2A	W11546077		Electronic, Control (lcx) (white)   (Replaces: W11038144)				$ 366.15
2B	W11536813		Electronic, Control (lcx) (biscuit)   (Replaces: W11038145)		Appelez-nous	-
3A	W11158184		Console, Assembly   (Replaces: W11027379)		Appelez-nous	-
3B	W11158185		Console, Assembly   (Replaces: W11027380)		Appelez-nous	-
4A	5500-287		Switch, Infinite (right Rear And Left Rear)   (Replaces: 3148951)			Immediately	$ 52.39
7A	W11158173		Knob (white)   (Replaces: W11022720)			Immediately	$ 21.54
7B	W11158174		Knob (biscuit)   (Replaces: W11022721)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
