View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

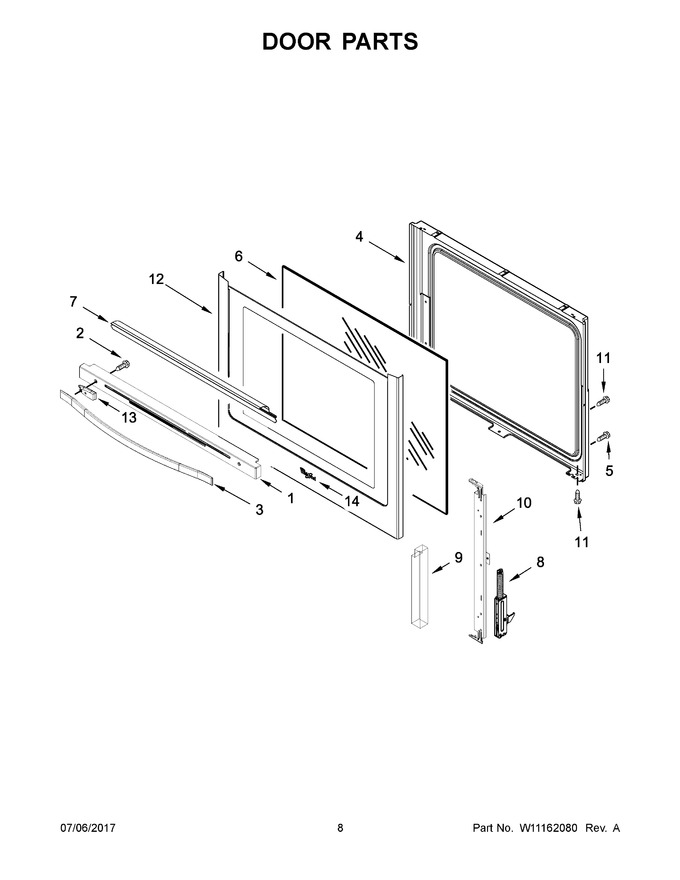

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10335333 | Trim, Top (stainless) |
|
$ 174.97 | |||||
| 2 | W11396735 | Screw (Replaces: W10426267) |
|
$ 14.75 | |||||
| 3 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 175.54 | ||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 331.51 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 252.42 | |||||
| 7 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 237.04 | ||||
| 8 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 63.80 | ||||
| 9 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 27.02 | |||||
| 10 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 133.75 | |||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | W10289144 | Glass Assembly, Outer Door (stainless (includes Badge)) |
|
$ 237.78 | |||||
| 13 | WPW10254688 | Standoff, Handle (stainless) (Replaces: W10254688) |
|
$ 77.48 | |||||
| 14 | W11178521 | Badge (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 |
