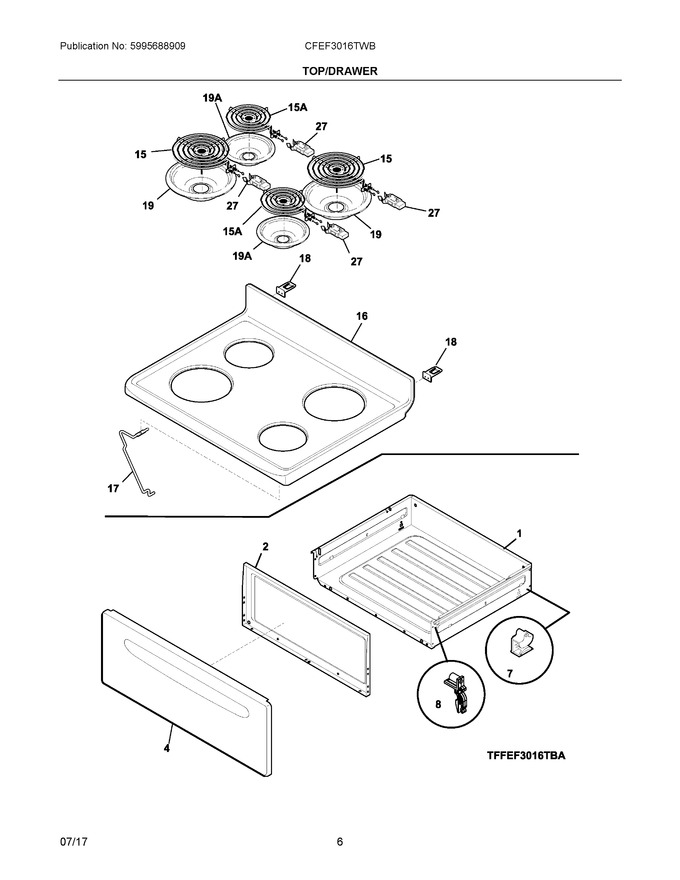

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility   (Replaces: 316408705)			Immediately	$ 122.90
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 32.03
4	5304511973		Panel, Drawer, White, Outer, W/intgr Handle				$ 111.17
7	316407402		Glide, Drawer, Rear   (Replaces: 316407400)			Immediately	$ 10.95
8	5304490938		Glide, Drawer, Front			Immediately	$ 16.01
15	316442301		Element, Surface, 8", Large   (Replaces: 318372214)			Immediately	$ 49.32
16	5304531767		Main Top, White, W/brkt   (Replaces: 316610037)				$ 164.08
17	316057601		Rod, Support, Main Top				$ 71.66
18	316580800		Bracket-hinge, Main Top			Immediately	$ 10.95
19	A316222301		Pan-surface Element, Large, Black, (2)   (Replaces: 318067075)			Immediately	$ 16.84
27	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5303912666)			Immediately	$ 15.34
15A	318372211		Element, Surface, 6", Small			Immediately	$ 50.15
19A	A316222201		Pan-surface Element, Small, Black, (2)   (Replaces: 318067076)			Immediately	$ 16.27
NI	5308014215		Screw, 6-20 X 0.312				$ 2.53
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316045000		Clip, Wiring Harness, Green, Main Top		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316580400		Harness, Wiring, Surface Units				$ 204.86
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black				$ 14.96
