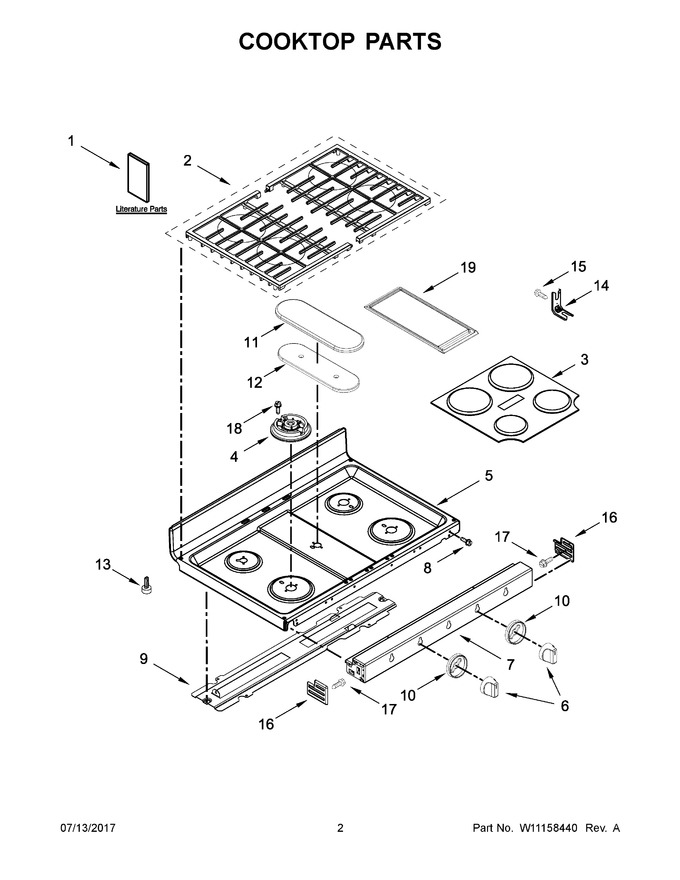

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10526071 | Instructions, Installation |
|
- | |||||
| 2 | W11673268 | Kit, Grate (Replaces: W10649701) |
|
$ 365.59 | |||||
| 3 | WPW10299236 | Kit, Burner Cap (black) (Replaces: W10299236) |
|
Immediately | $ 225.49 | ||||
| 4 | WPW10406878 | Head, Burner (17.5k) (left Front) (Replaces: W10406878) |
|
$ 107.48 | |||||
| 5 | W10336330 | Cooktop (black) (Replaces: W10260169) |
|
$ 420.07 | |||||
| 6 | W11160334 | Knob (stainless) (Replaces: W10886658) |
|
Immediately | $ 75.08 | ||||
| 7 | W11228125 | Panel, Manifold (stainless) (Replaces: W10711043) |
|
Immediately | $ 272.93 | ||||
| 8 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 9 | W10518258 | Bracket, Cooktop Support |
|
- | |||||
| 10 | W11188712 | Bezel (Replaces: W10850043) |
|
Immediately | $ 61.48 | ||||
| 11 | WPW10171140 | Set, Fish Burner Cap (black) (Replaces: W10171140) |
|
$ 168.47 | |||||
| 12 | WPW10333445 | Base, Burner (fish Burner Only) (Replaces: W10333445) |
|
$ 110.05 | |||||
| 13 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 17.61 | ||||
| 14 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F656-51) |
|
Immediately | $ 6.11 | ||||
| 15 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 16 | W10823301 | Cap, End (stainless (left)) |
|
- | |||||
| 17 | W11233072 | Screw (Replaces: 7101P634-60) |
|
Immediately | $ 14.72 | ||||
| 18 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 8.56 | ||||
| 19 | W10432544 | Griddle |
|
Immediately | $ 56.67 | ||||
| 16A | W10823299 | Cap, End (stainless (right)) |
|
- | |||||
| 1A | W10912995 | Guide, Use & Care |
|
- | |||||
| 1B | W10647745 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 4A | WPW10406243 | Head, Burner (6k) (left Rear & Right Rear) (Replaces: W10406243) |
|
Immediately | $ 39.08 | ||||
| 4B | WPW10336094 | Head, Burner (center) (Replaces: W10336094) |
|
$ 227.81 | |||||
| 4C | WPW10406797 | Head, Burner (12.5k) (right Front) (Replaces: W10406797) |
|
$ 92.91 | |||||
| NI | 7109P084-60 | Washer, Fiber |
|
- | |||||
| NI | WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 5.07 | |||||
| NI | W11172531 | Harness, Sensor & Locks (Replaces: W10745683) |
|
$ 119.20 | |||||
| NI | W10408058 | Harness, Spark |
|
$ 77.20 | |||||
| NI | W11172428 | Harness, Eol (mrc) (Replaces: W10853127) |
|
- | |||||
| NI | W10745674 | Harness, Main |
|
$ 284.66 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 8019P026-60 | Clip, Wire-wrap Nylon |
|
- | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- |
