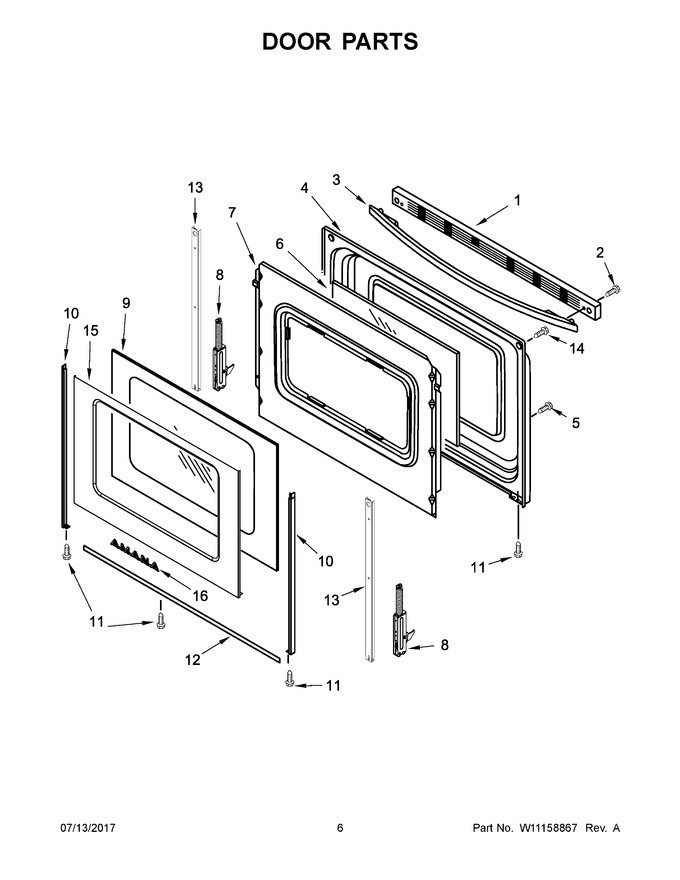

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10817433		Trim, Top (white)   (Replaces: W10310920)			Immediately	$ 103.27
2	W10817436		Screw   (Replaces: W10168559)			Immediately	$ 8.14
3	W10817434		Handle, Door (white)   (Replaces: W10323588)			Immediately	$ 234.82
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	W11399628		Glass, Inner   (Replaces: W10620754)				$ 171.68
7	W11685635		Retainer, Insulation   (Replaces: 9761505)				$ 188.29
8	WPW10299225		Hinge, Active   (Replaces: W10299225)			Immediately	$ 52.34
9	W10904906		Glass, Outer (white)   (Replaces: W10851723)				$ 228.32
10	WP8523172		Trim, Side (white (left))   (Replaces: 8523172)			Immediately	$ 69.93
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
12	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 61.37
13	W11502236		Strap, Door   (Replaces: W10544179)			Immediately	$ 27.68
14	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
15	W11214475		Glass Assembly, Outer Door (stainless)   (Replaces: W10890951)				$ 425.73
16	W10849465		Badge (white)			Immediately	$ 82.81
10A	WP8523166		Trim, Side (white (right))   (Replaces: 8523166)			Immediately	$ 84.23
16A	W11240541		Badge (stainless)   (Replaces: W10846752)			Immediately	$ 77.95
3A	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 252.66
8A	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
9A	W11702168		Glass, Outer (black)   (Replaces: W10886896)				$ 185.87

    View Diagram in Separate Window       Print Part List
