SELECT A DIAGRAM

01 - Cover Sheet

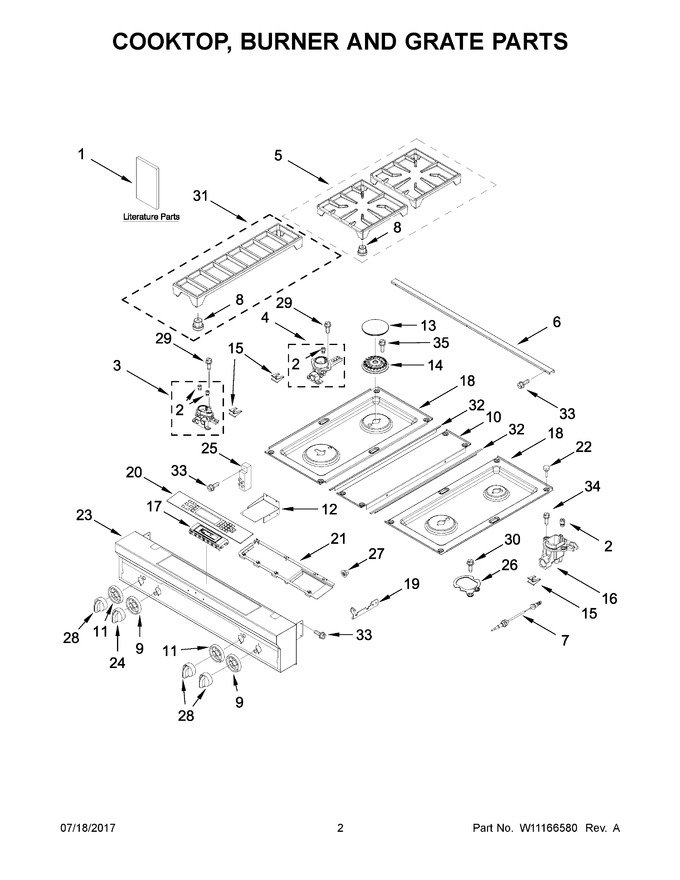

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Chassis Parts


05 - Oven Parts


06 - Top Venting


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11090447		Guide, Use & Care		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front, High)				$ 90.69
3	W10846622		Assembly, Orifice Holder (left Front)				$ 111.86
4	W10846623		Assembly, Orifice Holder (left Rear & Right Front)				$ 111.86
5	W11569347		Assembly, Grate (black)   (Replaces: W10221252)				$ 365.12
6	W10269218		Trim, Island				$ 265.16
7	W10854967		Electrode, Burner   (Replaces: 8286725)			Immediately	$ 48.38
8	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 10.60
9	W11103328		Bezel, Front   (Replaces: W10896327)		Appelez-nous	-
10	W10189105		Filler, Cooktop		Appelez-nous	-
11	W11103330		Bezel, Rear   (Replaces: W10896325)		Appelez-nous	-
12	W10498407		Bracket, Spark Module				$ 78.97
13	WPW10256034		Cap, Burner (black (left Front))   (Replaces: W10256034)				$ 138.19
14	W11106799		Spreader, Flame (left Front)   (Replaces: W10879806)			Immediately	$ 89.01
15	W11684564		Spring, Electrode (left Front, Left Rear, & Right Front)   (Replaces: W10827923)			Immediately	$ 12.65
16	W10883622		Holder, Orifice (aux) (right Rear)				$ 111.86
17	WPW10298119		Module, User Interface   (Replaces: W10298119)				$ 510.59
18	W10352969		Cooktop (black (left))				$ 335.75
19	W10130760		Bracket, Moving Console (left)				$ 75.94
20	WPW10116104		Keypad   (Replaces: W10116104)			Immediately	$ 372.51
21	W10250476		Bracket, User Interface		Appelez-nous	-
22	4448520		Bumper, Door				$ 22.25
23	WPW10115889		Assembly, Console   (Replaces: W10115889)				$ 426.20
24	W11103350		Knob, Dual (stainless)   (Replaces: W10250392)				$ 86.27
25	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 238.24
26	8286930		Gasket, Orifice				$ 95.73
27	7103P166-60		Nut				$ 18.56
28	W11103351		Knob, Single (stainless)   (Replaces: W10250394)				$ 83.54
29	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 7.55
30	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
31	W11241670		Assembly, Filler Grate   (Replaces: W10221299)				$ 237.21
32	W10271524		T-strip				$ 212.34
33	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
34	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
35	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
13A	WPW10256032		Cap, Burner (black (left Rear & Right Front))   (Replaces: W10256032)			Immediately	$ 88.38
13B	WPW10364463		Cap, Burner (black (right Rear))   (Replaces: W10364463)			Immediately	$ 55.85
14A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 101.02
14B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 149.87
15A	8286863		Spring, Electrode (right Rear)				$ 76.92
18A	W10352968		Cooktop (black (right))				$ 337.26
19A	W10130759		Bracket, Moving Console (right)				$ 75.94
1A	W11090456		Instructions, Installation		Appelez-nous	-
1B	W10403294		Sheet, Tech (english)		Appelez-nous	-
1C	W10403296		Sheet, Tech (french)		Appelez-nous	-
1D	W10776010		Insert, Grill Pan		Appelez-nous	-
2A	W10819958		Orifice (1.2k) (left Front, Low)   (Replaces: W10256132)				$ 97.77
2B	W11051480		Orifice (15k) (left Rear & Right Front)   (Replaces: W10364221)				$ 90.69
2C	W10791075		Orifice (5k) (right Rear)   (Replaces: W10282663)				$ 103.68
NI	W10283996		Assembly, Injector		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10338986		Harness, Wiring (main)				$ 335.03
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W10494088		Harness, Wire (communication)			Immediately	$ 75.57
NI	W10503778		Harness, Wire (switch, F/s)			Immediately	$ 190.30
NI	W10763500		Harness, Ignition (includes 3 Igniters)				$ 183.87
NI	WP112432		Nut, Hex   (Replaces: 112432)				$ 8.63
NI	4450800		Screw, Grounding				$ 13.47
NI	W11321066		Cord, Power   (Replaces: W10624586)				$ 118.94
NI	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	9757778		Bushing, Snap Split				$ 97.63
NI	8019P013-60		Clip, Wire Lock				$ 15.70
NI	WP854334		Spacer, Rubber   (Replaces: 8010P086-60)				$ 13.94
NI	W10726866		Connector, Ribbon				$ 83.88
NI	W10766100		Kit, Lp Conversion		Appelez-nous	-
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 189.23
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
